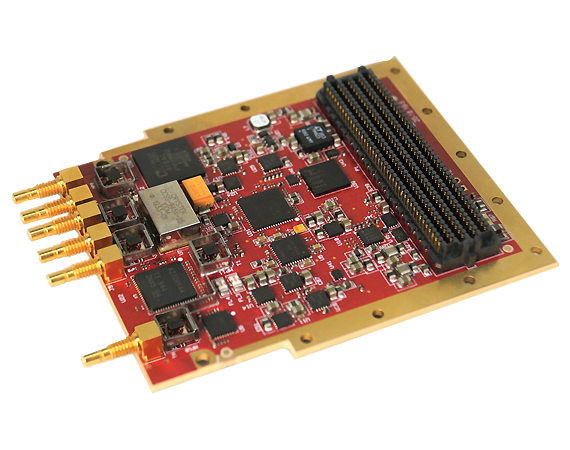

FPGA Mezzanine Cards (FMC)

FMCs bring modularity to high performance I/O - whether you need high bandwidth ADCs and DACs for radar applications, Gigabit Ethernet for digital communications, or clock and trigger distribution for multi-board synchronization.

Active Products

Product Name	Function	Channels	Data Rate	Resolution	Signaling	FMC Connector
FMC104 FPGA Mezzanine Card	Analog Input	4	250 Msps	14-bit	LVCMOS/LVDS	LPC
FMC108 FPGA Mezzanine Card	Analog Input	8	250 Msps	14-bit	LVCMOS/LVDS	HPC
FMC110 FPGA Mezzanine Card	Analog Input and Analog Output	2 in, 2 out	1000 Msps input, 1250 Msps output	12-bit, 16-bit	LVDS	HPC
FMC112 FPGA Mezzanine Card	Analog Input	12	125 Msps	14-bit	LVDS	LPC
FMC116 FPGA Mezzanine Card	Analog Input	16	125 Msps	14-bit	LVDS	HPC
FMC120 FPGA Mezzanine Card	Analog Input and Analog Output	4 in, 4 out	1000 Msps input, 1250 Msps output	16-bit	JESD204B	HPC
FMC121 FPGA Mezzanine Card	Analog Input and Analog Output	2 in, 2 out	1000 Msps input, 1400 Msps output	16-bit	JESD204B	HPC
FMC122 FPGA Mezzanine Card	Analog Input	1, 2	2500 Msps (1 Ch), 1250 Msps (2 Ch)	8-bit	LVDS	LPC
FMC123 FPGA Mezzanine Card	Analog Input	4	1000 Msps	16-bit	JESD204B	LPC
FMC125 FPGA Mezzanine Card	Analog Input	1, 2, 4	5000 Msps (1 Ch), 2500 Msps (2 Ch), 1250 Msps (4 Ch)	8-bit	LVDS	HPC
FMC126 FPGA Mezzanine Card	Analog Input	1, 2, 4	5000 Msps (1 Ch), 2500 Msps (2 Ch), 1250 Msps (4 Ch)	10-bit	LVDS	HPC
FMC134 FPGA Mezzanine Card	Analog Input	2, 4	6400 Msps (2 Ch), 3200 Msps (4 Ch)	12-bit	JESD204B	HSPC (FMC+)
FMC140 FPGA Mezzanine Card	Analog Input	4	370 Msps	16-bit	LVDS	HPC
FMC142 FPGA Mezzanine Card	Analog Input and Analog Output	2 in, 2 out	370 Msps input, 2500 Msps output	16-bit	JESD204B	HPC
FMC144 FPGA Mezzanine Card	Analog Input and Analog Output	4 in, 4 out	370 Msps input, 2500 Msps output	16-bit	JESD204B	HPC
FMC150 FPGA Mezzanine Card	Analog Input and Analog Output	2 in, 2 out	250 Msps input, 800 Msps output	14-bit, 16-bit	LVDS	LPC
FMC151 FPGA Mezzanine Card	Analog Input and Analog Output	2 in, 2 out	250 Msps input, 800 Msps output	14-bit, 16-bit	LVDS	LPC
FMC160 FPGA Mezzanine Card	Analog Input and Analog Output	1 in, 1 out, 2 in	3600 Msps input (1 Ch), 1800 Msps input (2 Ch), 2850 Msps output	12-bit, 14-bit	LVDS	HPC
FMC161 FPGA Mezzanine Card	Analog Input	1, 2	3600 Msps (1 Ch), 1800 Msps (2 Ch)	12-bit	LVDS	HPC
FMC163 FPGA Mezzanine Card	Analog Input and Analog Output	1 in, 1 out, 2 in	2850 Msps output, 4000 Msps input (1 Ch), 2000 Msps input (2 Ch)	12 in, 14 out	LVDS	HPC
FMC164 FPGA Mezzanine Card	Analog Input	4	250 Msps	16-bit	LVDS	LPC
FMC168 FPGA Mezzanine Card	Analog Input	8	250 Msps	16-bit	LVDS	HPC
FMC170 FPGA Mezzanine Card	Analog Input and Analog Output	1 in, 1 out	5000 Msps input, 5000 Msps output	10-bit	LVDS	HPC

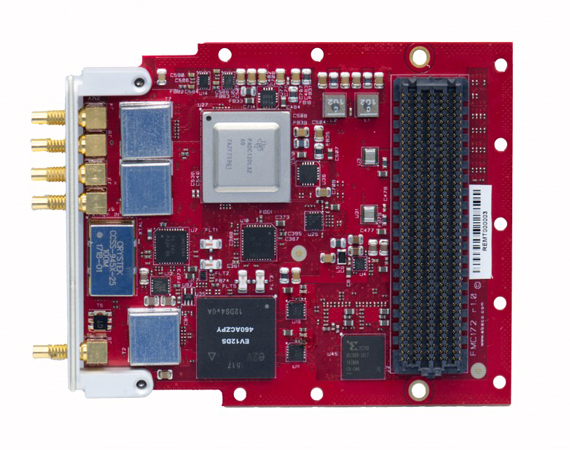

FMC172 FPGA Mezzanine Card	Analog Input, Analog Output	2	6.4 GSPS (1 channel), 6.0 GSPS output (1 channel)	10-bit	LVDS	RF-RF
FMC176 FPGA Mezzanine Card	Analog Input and Analog Output	2 out, 4 in	250 Msps input, 2850 Msps output	14-bit	JESD204B (in), LVDS (out)
FMC204 FPGA Mezzanine Card	Analog Output	4	500 Msps	16-bit	LVDS	HPC

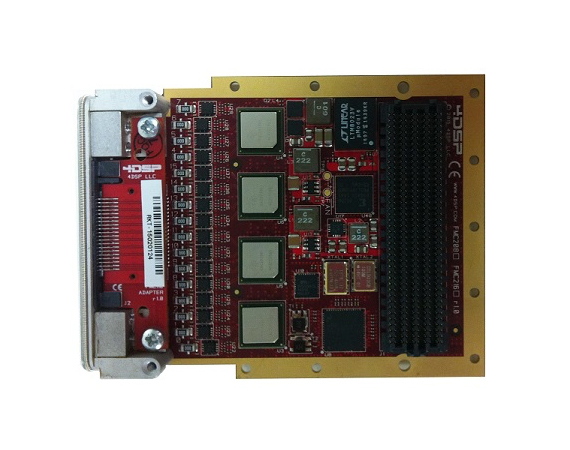

FMC216 FPGA Mezzanine Card	Analog Output	4, 8, 16	1250 Msps (4 Ch), 625 Msps (8 Ch), 312.5 Msps (16 Ch)	16-bit	JESD204B	HPC
FMC230 FPGA Mezzanine Card	Analog Output	2	2850 Msps	14-bit	LVDS	HPC
FMC30RF FPGA Mezzanine Card	Receiver & Transceiver (Analog Input and Output)	1RX, 1TX			LVDS	LPC
FMC40X FPGA Mezzanine Card	Clock Distribution and Trigger Distribution	8 trigger out, 8 clock out				LPC
FMC422 FPGA Mezzanine Card	CameraLink Video Interface	2	255MB/s (Base), 510MB/s (Medium), 680MB/s (Full)	24-bit (Base), 48-bit (Medium), 64-bit (Full)		HPC
FMC424 FPGA Mezzanine Card	Digital Communications	2	40 Gbps		GBT	HPC
FMC431 FPGA Mezzanine Card	Digital Communications	2			GBT	LPC
FMC667 FPGA Mezzanine Card	Digital Signal Processor					HPC

FPGA MEZZANINE CARDS (FMC) products that are No Longer Recomended or Discontinued see below.

Discontinued Products

Product Name	Description
FMC103 FPGA Mezzanine Card	The FMC103 is a 4-channel 12-bit 210 MSPS ADC FMC (VITA 57.1) which can be sampled by an internal clock source or an externally supplied sample clock.
FMC107 FPGA Mezzanine Card	The FMC107 is an 8-channel 12-bit 65 MSPS ADC FMC (VITA 57.1) which can be sampled by an internal clock source or an externally supplied sample clock.
FMC410 FPGA Mezzanine Card	The FMC410 is an optical transceiver FMC module that offers ten independent optical transmit and receive links with maximum data rates of 6.25Gbps or 10Gbps.
