Rugged Display Computers

Complete, pre-integrated graphics systems for the most demanding video and graphics applications that are mission-ready and minimize risk, cost and time-to-deployment.

Product Name Form Factor Processor Conformal Coating Cooling I/O Maximum Storage Environmental

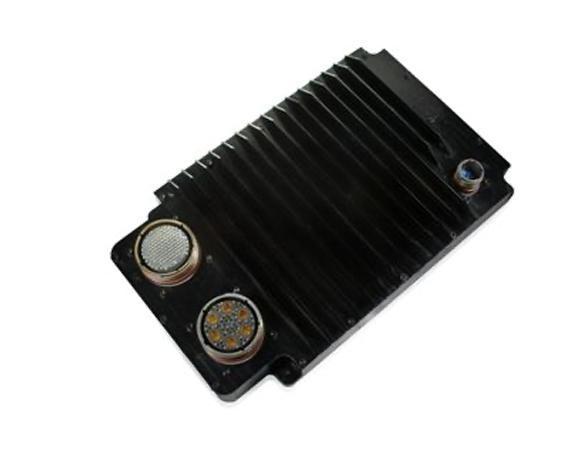

daq8580 FMV Compression System daq8580 FMV Compression System Standalone Dual ARM 9 Yes Conduction Analog Video, Digital Video, Ethernet, RS-422, Cameralink MIL-STD-704F, MIL-STD-1275B
GVC1001 GVC1001 Small Form Factor Package CPU: 8-core ARM V8.2 64-bit CPU, Peak Performance: Up to 10 TFLOPS (FP16), Up to 32 TOPS HP (int8), GPU: 512-core Volta GPU with Tensor cores, SoM: NVIDIA Jetson AGX Xavier No Base Plate CANbus, DisplayPort, USB, 10 Gigabit Ethernet, 1 Gigabit Ethernet, UARTs, Audio I/O and GPIO 256 GB NVMe SSD Lab grade operating environment
GVC2000 Mission Ready Computer GVC2000 Rugged HPEC Display Computer VPX 3U Intel Xeon D, NVIDIA GM107 640-core GPU Base Plate DVI, Gigabit Ethernet, GPIO, Serial, USB, VGA 1 TeraByte Elements from MIL-STD-461G, DO-160G, MIL-STD-704F and MIL-STD- 810G
MAGIC1 Rugged Display Computer MAGIC1 Rugged Display Computer 3U Boxed, VPX 3U 4th Gen. Intel Core i7 quad-core up to 2.4 GHz, NVIDIA EXK107 384-core GPU Yes Base Plate Audio, DVI, Gigabit Ethernet, Keyboard and Mouse, Serial, SSD, USB, VGA Up to 256 GBytes Level 4-5 Conduction Cooled
MAGIC1 Rugged Display Computer MAGIC1 Rugged Display Computer 3U Boxed, VPX 3U 4th Gen. Intel Core i7 quad-core up to 2.4 GHz, NVIDIA EXK107 384-core GPU Yes Base Plate Audio, DVI, Gigabit Ethernet, Keyboard and Mouse, Serial, SSD, USB, VGA Up to 256 GBytes Level 4-5 Conduction Cooled
MCS1000 Mission Ready Computer MCS1000 Rugged Mission/Display Computer VPX 3U CoreAVI/AMD Radeon E8860 GPU, Intel Xeon E3-1505M, E3-1505L v6 Base Plate ARINC 429, Discrete, DVI, Gigabit Ethernet, MIL-STD-1553, Serial, USB 1 TeraByte Elements from MIL-STD-461G, DO-160G, MIL-STD-704F and MIL-STD- 810G

RUGGED DISPLAY COMPUTERS products that are No Longer Recomended or Discontinued see below.

Product Name Description
DAQMAG2A Rugged Display Computer

Video Processing Powerhouse. The Abaco DAQMAG2A rugged display computer.
IVD2010 Intelligent Vehicle Display

The IVD2010 is a rugged 10-inch intelligent vehicle display featuring Intel Core 2 Duo and NVIDIA GPGPU processors.
IVD2015 Intelligent Vehicle Display

The IVD2015 features a 15-inch display, but is otherwise identically configured to the IVD2010.
