| Product Name | Form Factor | Ports | Port Type | Front Panel I/O Connectors | Rear Panel I/O Connectors | |
|---|---|---|---|---|---|---|
 |

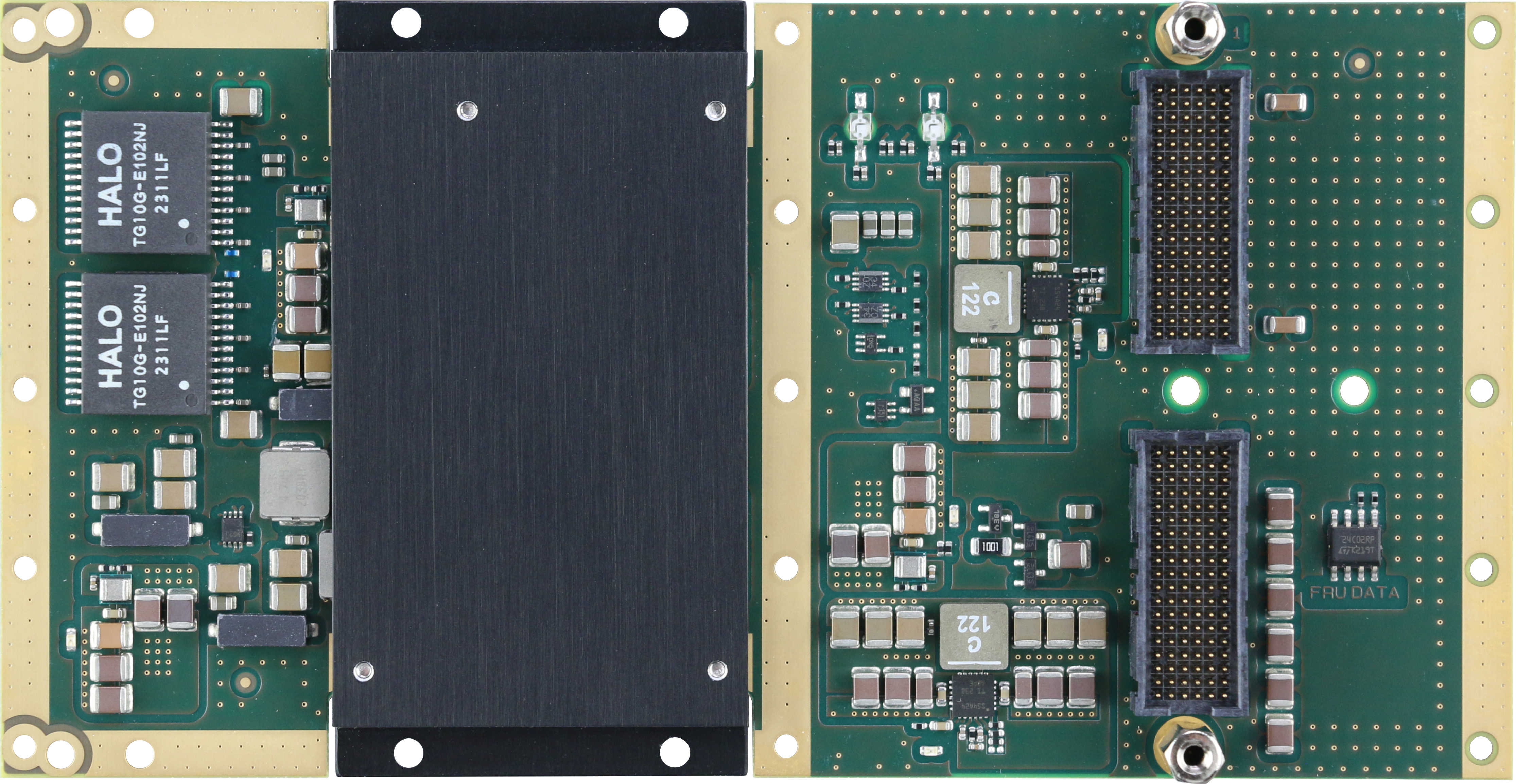

NIC10G Network Interface Card | XMC | 2 | 10GigE | SFP+ | 10GBase-KX4 & 10GBase-CX4 |
 |
NIC10GBT Network Interface Card | XMC | 2 | 10GBase-T | 10GBase-T | |
 |
NIC10GFT Network Interface Card | XMC | 2 | 10GBase-T | RJ-45 | |
 |
PMC-GBIT-DT2BP Network Interface Card | PMC | 2 | 10/100/1000BaseT | 10/100/1000BaseT | |
 |
PMC613FXRC Network Interface Card | PMC | 2 | 100BaseFX | SC, ST | |
 |
XMC477RC Network Interface Card | XMC | 4 | 1000BaseLX, 1000BaseSX, 1000BaseT | SFP |
ETHERNET NETWORK INTERFACE CARDS products that are No Longer Recomended or Discontinued see below.
| Product Name | Body |
|---|---|

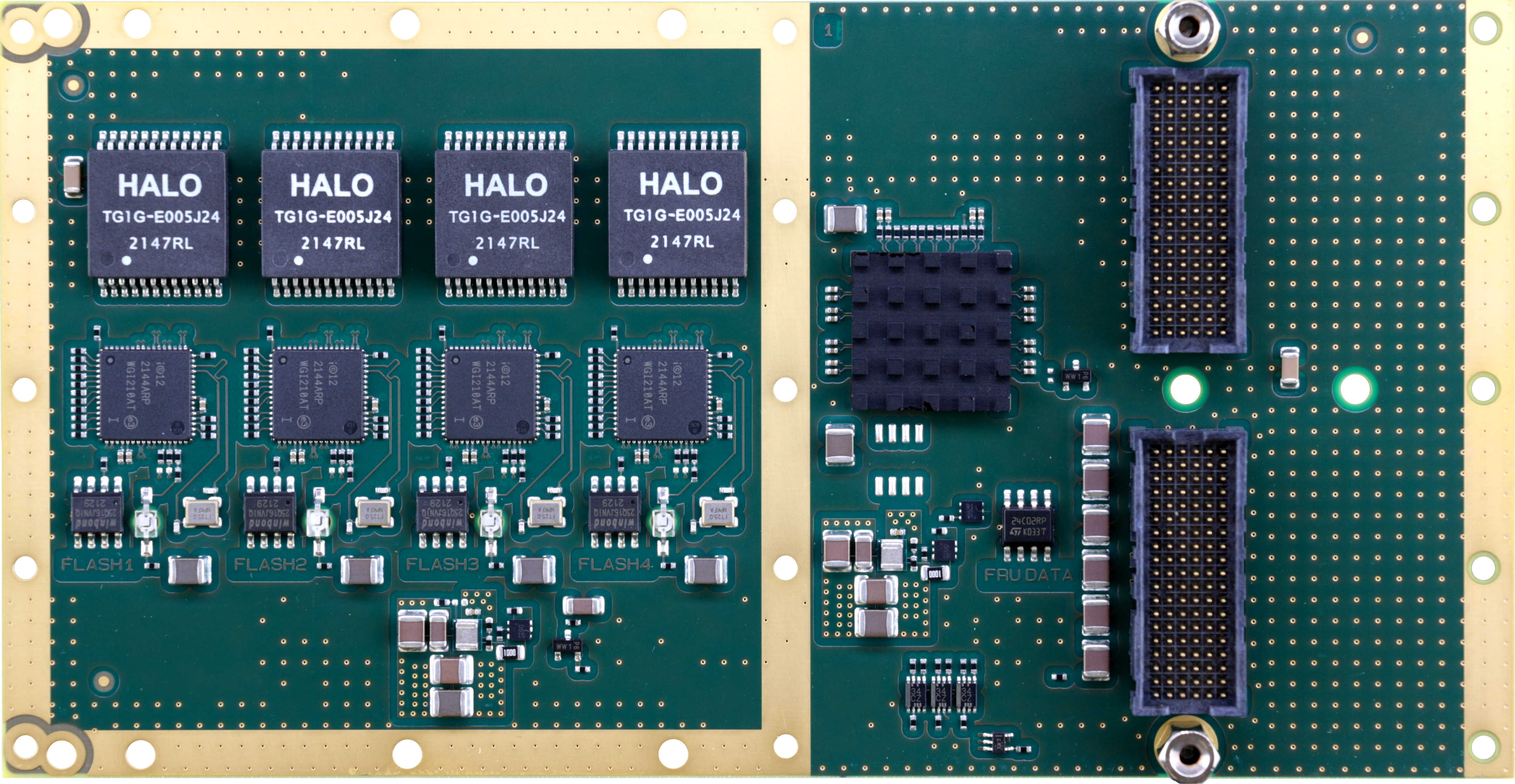

| NIC1GBT Network Interface Card |
Advanced Networking Capabilities Each Ethernet interface supports 10, 100 and 1000 Mbits transmission rates with auto-negotiation for full duplex operation; 10 and 100 Mbit/s transmissions for half duplex operation, with support for Windows, Linux and VxWorks. |
| NIC1GFT Network Interface Card |
Advanced Networking Capabilities Each Ethernet interface supports 10, 100 and 1000 Mbits transmission rates with auto-negotiation for full duplex operation; 10 and 100 Mbit/s transmissions for half duplex operation, with support for Windows, Linux and VxWorks. |
| Product Name | Body |
|---|---|
| PMC676RCTX Network Interface Card |
2-port Gigabit Ethernet PMC network interface card (NIC) with 10/100/1000BaseT interfaces. |
| PMC676RC Network Interface Card |
2-port Gigabit Ethernet PMC network interface card (NIC) with 1000BaseSX or 1000BaseLX interfaces, LC or SC connectors. |
| CP3-QUAD100TX |
CP3-QUAD100TX is a full hot swap capable, 64-bit/66 MHz 10/100 Ethernet interface card with four independent interfaces for high-density 3U CPCI computing applications. |
| PMC-DUAL100BT | PMC-DUAL100BT is a PCI Mezzanine Card (PMC) with dual 10BaseT/100BaseTX Ethernet interfaces. |
| PMC-GBIT-DT2CC Network Interface Card |
The PMC-GBIT-DT2CC addresses applications requiring high-bandwidth system interconnection, PMC form factor, and a high level of protection against heat and particle contaminates. |
| PMC-Gigabit-DFX | PMC-Gigabit-DFX is a PMC with dual fiber 1000Base-SX Gigabit Ethernet interface controller ports. |
| PMC-Gigabit-DTX | PMC-Gigabit-DTX is a PMC with dual 1000BaseT Gigabit Ethernet interface controller ports |
| PMC494 |
This PMC provides a media converter that converts 10BaseT to 10Base2. It also provides 3 additional 10BaseT ports routed to the PMC J4 user defined I/O pins. |
| PMC610 | PMC610 is a PMC 10/100BaseTX Ethernet NIC with four 10/100Mbit Ethernet ports. The four 10/100BaseTX Ethernet engines are each capable of full duplex operation in both 10 and 100 Mbit modes. Versions supporting wide operating temperature range are availab |
| PMC610J4 | PMC610J4 is a PMC 10/100BaseTX Ethernet NIC with four 10/100Mbit Ethernet ports routed to through the rear panel. Wide operating temperature range version available. |
| PMC610J4RC Network Interface Card |
PMC 10/100BaseTX Ethernet NIC with four 10/100Mbit Ethernet ports routed through to the rear panel. |
| PMC610RC Network Interface Card |
PMC 10/100BaseTX Ethernet NIC with four 10/100Mbit Ethernet ports capable of full-duplex operation in both 10 and 100Mbit modules. |
| PMC615 |
PMC615 is a 4-port 10/100Mbit Ethernet NIC with rear I/O. Four 10/100BaseTX engines are each capable of full duplex operation in both 10 and 100 Mbit modes. Each of the Ethernet/PCI interfaces includes a powerful DMA engine with very deep FIFO buffers. |
| PMC615RC | PMC615RC is a 4-port 10/100Mbit Ethernet NIC with rear I/O. Four 10/100BaseTX engines are each capable of full duplex operation in both 10 & 100 Mbit modes. Each of the Ethernet/PCI interfaces includes a powerful DMA engine with very deep FIFO buffers. |
| PMC618 |
PMC618 is a PMC 10/100Mbit Ethernet NIC offering 100BaseSX Ethernet connectivity. This PMC is available with four front access interfaces. |
| PMC676 |
PMC676 is a Gigabit Ethernet PMC NIC with dual 1000BaseSX interfaces. The card is capable of full duplex operation on each of its channels. |
| PMC676TX | PMC676TX is a Gigabit Ethernet PMC NIC with dual 10/100/1000BaseTX interfaces. The card is capable of full duplex operation on each of its channels. |
| PMC677 |
PMC677 is a fiber connected PMC designed to offer 1000Mbit full duplex Ethernet connectivity on four channels. This NIC uses LC connectors with SX or LX transceivers. The Ethernet/PCI interface includes a powerful DMA engine with 64KB deep FIFO buffers. |
| PMC677RCLC Network Interface Card |
4-port Gigabit Ethernet PMC network interface card (NIC) supporting 1000BaseSX or 1000BaseLX fiber, LC connectors. |
| PMC677RCTX Network Interface Card |
Gigabit Ethernet PMC network interface card (NIC) with four 10/100/1000aseT ports, RJ-45 connector |
| PMC677TX |
PMC677TX is a PMC designed to offer maximum 1000Mbit Ethernet connectivity. Using 10/100/1000BaseT, the PMC677TX is capable of full duplex operation. The Ethernet/PCI interface includes a powerful DMA engine with 64KB deep FIFO buffers. |
| PMC682/E |
PMC682/E is an Ethernet Network Interface Card (NIC) providing one 10/100BaseTX engine on a PMC. |
| PMC695 | PMC695 is an intelligent 1000BaseSX Gigabit Ethernet NIC. One 1000Mbit Ethernet controller is combined with a local RISC processor and PCI bridge system. |
| PMC695TX |
PMC695TX is an intelligent 1000BaseT Gigabit Ethernet NIC. One 1000Mbit Ethernet controller is combined with a local RISC processor and PCI bridge system. Features embedded TCP/IP. |
| PMC696LC | PMC696LC is an intelligent dual port 1000BaseSX Gigabit Ethernet NIC. Two 1000Mbit Ethernet controllers are combined with a local RISC processor and PCI-X system. This NIC features fail-over firmware. |
| PMC696TX |
PMC696TX is an intelligent dual port 10/100/1000BaseT Gigabit Ethernet NIC. Two 1000Mbit Ethernet controllers are combined with a local RISC processor and PCI-X system. |
| RM610 | RM610 is a PCI Ethernet NIC providing four 10/100Mbit Ethernet interfaces. The 10/100BaseTX engines are each capable of full duplex operation in both 10 and 100 Mbit modes. Each of the Ethernet/PCI interfaces includes a powerful DMA engine. |
| RM666FX | RM666FX dual port 100BaseFX Ethernet PCI Network Interface Card (NIC) has front I/O, optional Solaris LAN boot, and SC connectors. |
| RM675LC | RM675LC is a dual port 100BaseFX Ethernet PCI NIC with failover software. |
| RM675TX |
RM675TX is a dual port 10/100BaseTX Gigabit Ethernet PCI NIC with failover software. |
| RM676 | RM676 is a Gigabit Ethernet PCI NIC with dual 1000BaseSX interfaces. The card is capable of full duplex operation on each of its channels.1000BaseLX optional. |
| RM676RC | RM676RC is a Gigabit Ethernet PCI NIC with dual 1000BaseSX interfaces. The card is capable of full duplex operation on each of its channels.1000BaseLX optional. |
| RM676RCTX | RM676RCTX is a Gigabit Ethernet PCI NIC with dual 1000BaseTX interfaces. The card is capable of full duplex operation on each of its channels. |
| RM676TX | RM676TX is a Gigabit Ethernet PCI NIC with dual 1000BaseTX interfaces. The card is capable of full duplex operation on each of its channels. |
| RM677 | RM677 is a fiber connected PCI edge card designed to offer 1000Mbit Ethernet connectivity. Using 1000BaseSX (LX optional), the RM677 is capable of full duplex operation. The Ethernet/PCI interface includes a powerful DMA engine with 64KB deep FIFO buffer |
| RM677RC | RM677RC is fiber a connected PCI edge card offering 1000Mbit Ethernet connectivity. Using 1000BaseSX (LX optional), the RM677 is capable of full duplex operation. The Ethernet/PCI interface includes a powerful DMA engine with 64KB deep FIFO buffer |
| RM677RCTX |
RM677RCTX is a RoHS compliant PCI edge card offering maximum 1000Mbit Ethernet connectivity. Using 10/100/1000BaseT, the RM677RCTX is capable of full duplex operation. |
| RM677TX |
RM677TX is a PCI edge card designed to offer maximum 1000Mbit Ethernet connectivity. Using 10/100/1000BaseT, the RM677TX is capable of full duplex operation. |
| Telum GE-QLX | Telum GE-QLX is an AdvancedMC available with 4 1000BaseLX Gigabit Ethernet ports. |
| Telum GE-QSX | Telum GE-QSX is an AdvancedMC available with 4 1000BaseSX Gigabit Ethernet ports. |
| Telum GE-QT | Telum GE-QT is a 4-port Gigabit Ethernet AdvancedMC NIC providing high bandwidth and high port density. It is ideal for telecommunication platforms requiring additional Ethernet links and AdvancedMC form factor. |
| VD-FOE | VD-FOE software provides port failover for our Gigabit Ethernet network interface cards (NICs) using the VxWorks real-time operating system. |
| XD-FOE | XD-FOE software provides port failover for our Gigabit Ethernet network interface cards (NICs) using the Windows XP operating system. |
