XMCGA8 XMC graphics board

Delivers the latest in GPU performance, long term support, and configurable video outputs
XMCGA8 AMD/CoreAVI Radeon™ E8860 GPU-based graphics board

This product entered a Restricted Production Phase (RPP) on October 19, 2020

Please refer to downloads section below if you require documentation or software. If you have any questions or require product support, including help migrating to our latest products, please contact us.
To see all end of life products CLICK HERE.

Overview

Delivers 2x performance/slot

Whether you’re looking to upgrade an existing program or you’re designing a complex new application, the XMCGA8 XMC high performance graphics board features AMD GPU technology to deliver significantly more performance/slot than its predecessor. It provides unique flexibility with an industry-leading four DVI ports while its leadership is reinforced by its minimal TPD (thermal design power). Maximizing performance per slot while managing power usage now translates into lower overall system-, integration- and maintenance costs.



Multipurpose action hero

The XMCGA8 is perfectly suited for demanding graphical applications, as well as GPGPU (general purpose computing on a graphics processing unit) applications such as ISR (intelligence, surveillance, reconnaissance), radar and sonar. For video processing, the XMCGA8’s higher performance enables superior throughput in applications such as video stitching and sensor fusion in wide area surveillance applications. It can allow the incorporation of data from multiple sensor types to build a complete picture of a large geographical area, delivering increased situational awareness and context.

GPGPU

For the most demanding applications in SWaP-constrained platforms, you can benefit from Abaco being NVIDIA’s preferred provider of GPU technology into harsh environments.

More Details

Specifications

Application
Video & Graphics
Channels
2 out, 4 out
Chip Set:
AMD Radeon E8860 GPU
Control Interface
PCIe
Cooling
Air, Conduction
Extended Temperature Range
Yes
Form Factor
XMC
Front I/O
Yes
Maximum Memory
2 GB GDDR5 SDRAM
Platform
XMC
Ruggedization
Level 1-5 Air, Conduction Cooled
Video Output
DVI, VGA

Safety Certification

To minimize your pain, Abaco has invested in board and sub-system artifacts for certification of flight systems up to DAL A.

More Details

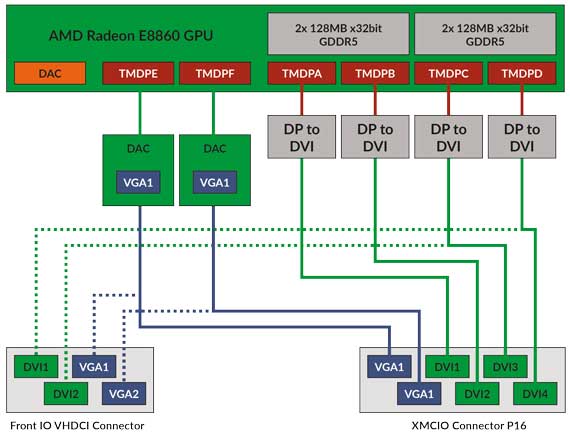

Block Diagram
