MAGIC1 Rugged Display Computer

High TRL system combines CPU, GPU
MAGIC1 Rugged Display Computer

This product entered a Restricted Production Phase (RPP) on May 3, 2021

Please refer to downloads section below if you require documentation or software. If you have any questions or require product support, including help migrating to our latest products, please contact us.
To see all end of life products CLICK HERE.

We recommend the following alternative solutions:

Overview

Effectively manage sensor data overload

There is ever greater demand for on-platform capabilities to handle the vast quantity of sensor-generated data and turn it into actionable intelligence. The rugged small form factor MAGIC1 display computer combines state-of-the-art CPU technology with the latest graphics processing units (GPUs) to deliver unprecedented levels of performance for such rugged applications. Where the platform is unmanned, the ability to provide a higher level of intelligence and autonomy to the platform can lead to increased mission capability, and reduce operator overload by presenting only relevant information for human-in-the-loop processing.

Accelerated time to market, time to action

To bring sophisticated data processing and analysis applications to market quickly, environments such as CUDA™, OpenCL™ and MATLAB® are available for application development. This support extends the capabilities of rugged mobile platforms and provides timely, actionable intelligence.

Expertise equals success

Providing graphics solutions to the military/defense and industrial markets for more than 20 years, Abaco Systems understands in image processing, video and graphics, and has subject matter experts to assist customers in choosing the right solution for any environment, whether in a laboratory or for deployment where shock, vibration, and high operating temperature are threats to reliability.















Abaco Lightning:

Bringing ‘off-the-shelf’ back to COTS.

More Details

Specifications

Conformal Coating
Yes
Cooling
Base Plate
Environmental
Level 4-5 Conduction Cooled
Extended Temperature Range
Yes
Form Factor
3U Boxed, VPX 3U
I/O
Audio, DVI, Gigabit Ethernet, Keyboard and Mouse, Serial, SSD, USB, VGA
Maximum Memory
8 GB DDR3 SDRAM
Maximum Storage
Up to 256 GBytes
Operating System (OS) Support
CUDA, Linux, MatLab, VxWorks, Windows XP
Operating Temp
-40°C to +85°C
Processor
4th Gen. Intel Core i7 quad-core up to 2.4 GHz, NVIDIA EXK107 384-core GPU
Ruggedization
Level 4-5 Conduction Cooled
Weight lb (kg)
9 (4)

GPGPU

For the most demanding applications in SWaP-constrained platforms, you can benefit from Abaco being NVIDIA’s preferred provider of GPU technology into harsh environments.

More Details

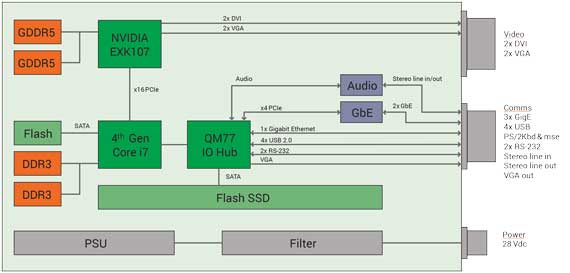

Block Diagram
