This product entered a Restricted Production Phase (RPP) on May 15, 2024

Please refer to downloads section below if you require documentation or software. If you have any questions or require product support, including help migrating to our latest products, please contact us.
To see all end of life products CLICK HERE.

Overview

COTS done right

The MCS1000 is a new breed of system that is mission-ready out of the box. It offers maximum configurability and a shorter delivery time, yet reduces program risks and costs.

Acrobats aren't this flexible

Abaco’s revolutionary expansion module allows the MCS1000 to accommodate almost any custom I/O requirements with minimal development time.

Putting costs on a diet

Zero to minimal NRE for standard configurations, pre-qualification testing slims development costs. Based on MIL-STD-461G, DO‑160G, MIL-STD-704F, MIL‑STD-810G specifications, the MCS1000 will fit your application’s toughest requirements with little to no additional testing needed.







Product Selection Guide

A comprehensive overview of our innovative product range – can be found in our latest Product Selection Guide.

DOWNLOAD

Specifications

AXIS Support
Yes
Cooling
Base Plate
Environmental
Elements from MIL-STD-461G, DO-160G, MIL-STD-704F and MIL-STD- 810G
Form Factor
VPX 3U
I/O
ARINC 429, Discrete, DVI, Gigabit Ethernet, MIL-STD-1553, Serial, USB
Maximum Memory
Up to 16 GB DDR4 SDRAM soldered with ECC
Maximum Storage
1 TeraByte
Operating System (OS) Support
VxWorks, Windows 10, RedHat 7.2, RHEL
Operating Temp
-40˚C to +71˚C
Other
Up to 4 ECM tiles for a broad range of I/O configuration
Processor
CoreAVI/AMD Radeon E8860 GPU, Intel Xeon E3-1505M, E3-1505L v6
Ruggedization
Level 1-5 Air, Conduction Cooled
Video Output
DVI, VGA
Weight lb (kg)
11.46 lbs (5.2 kg)

SWaP

Minimizing size, weight and power is one of the biggest challenges our customers face. That’s why we prioritize it in all our product designs.

More Details

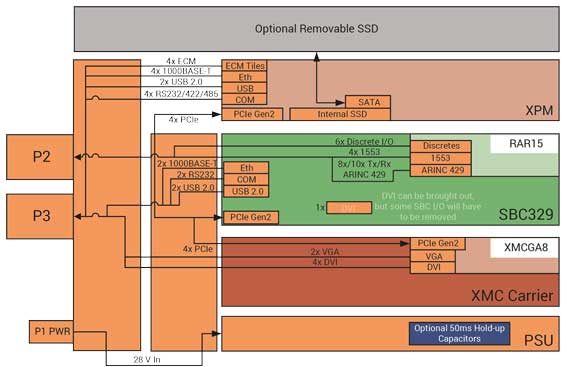

Block Diagram

mcs1000-block-diagram.jpg mcs1000-block-diagram.jpg
