GVC1001

Ultra-High Performance Graphics, Vision and AI Computer.
GVC1001

Overview

Turning the unclear into the clear

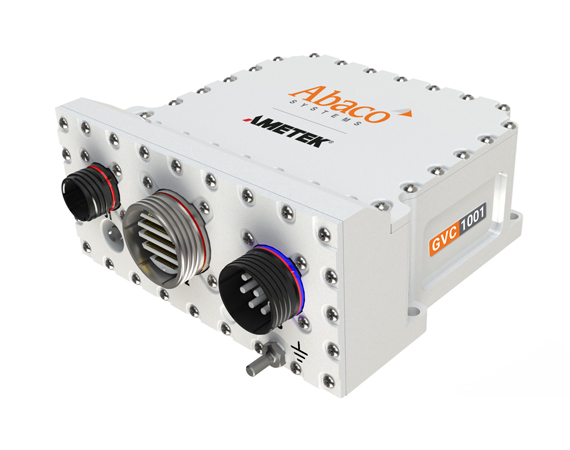

The GVC1001 is an ultra-high performance graphics, vision and AI computer aimed at SWaP-sensitive platforms primarily within ground vehicles, aviation, naval, and industrial platforms.

All the processing power you need

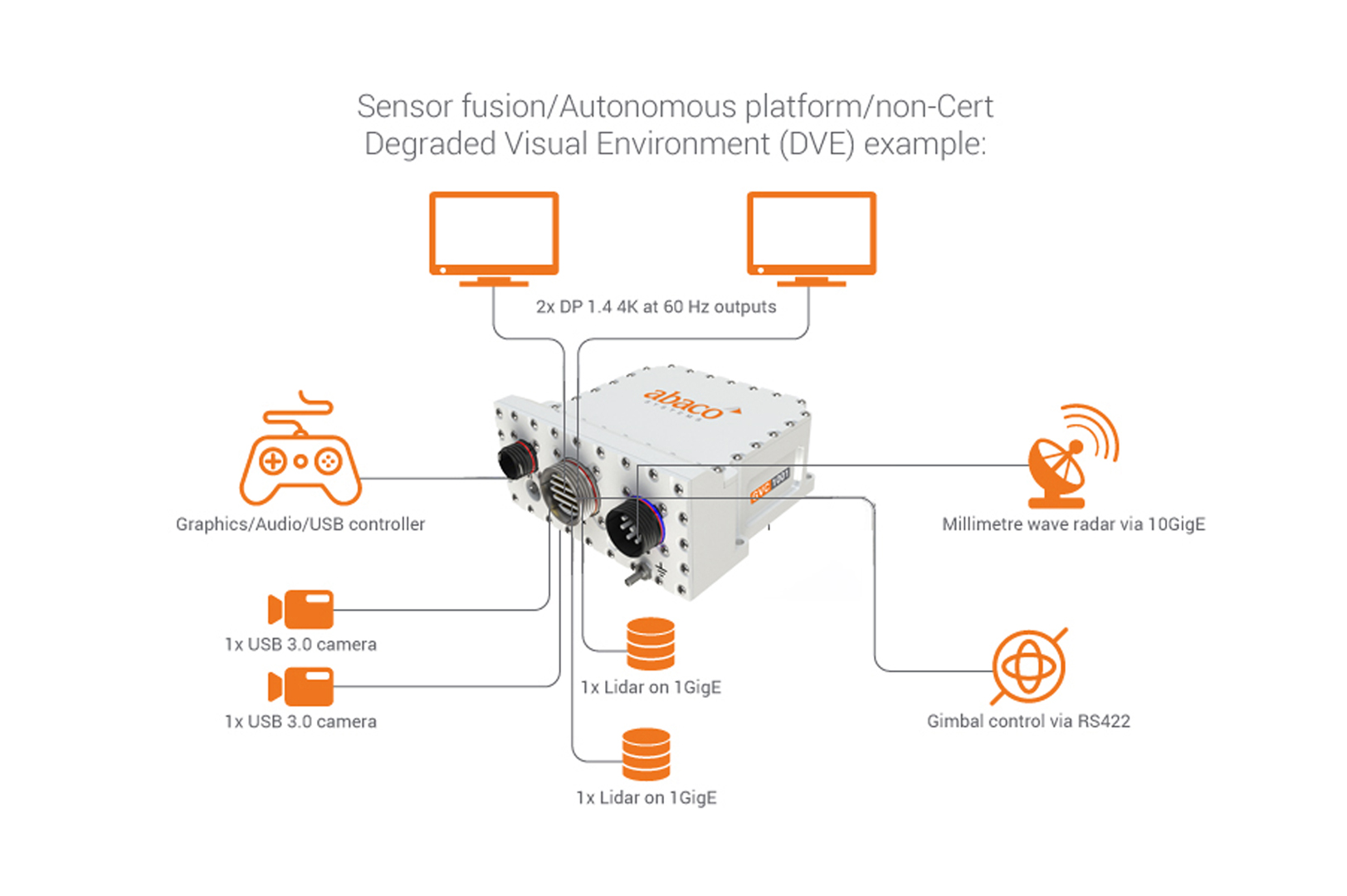

Leveraging the latest ultra-high performance NVIDIA ® Jetson AGX Xavier™ System on a Module (SoM) GPU, the GVC1001 delivers an astonishing 11 TeraFLOPS of compute capability, making it an ideal solution for applications including 360° situational awareness, autonomous sensor fusion computing, EO/IR processing, Degraded Visual Environment (DVE), display processing, moving map and many more.

And the connectivity too

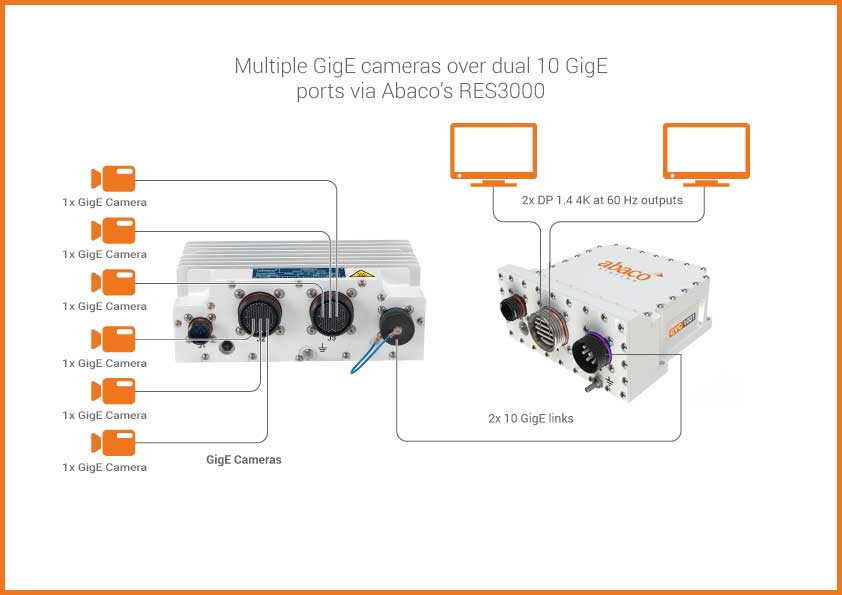

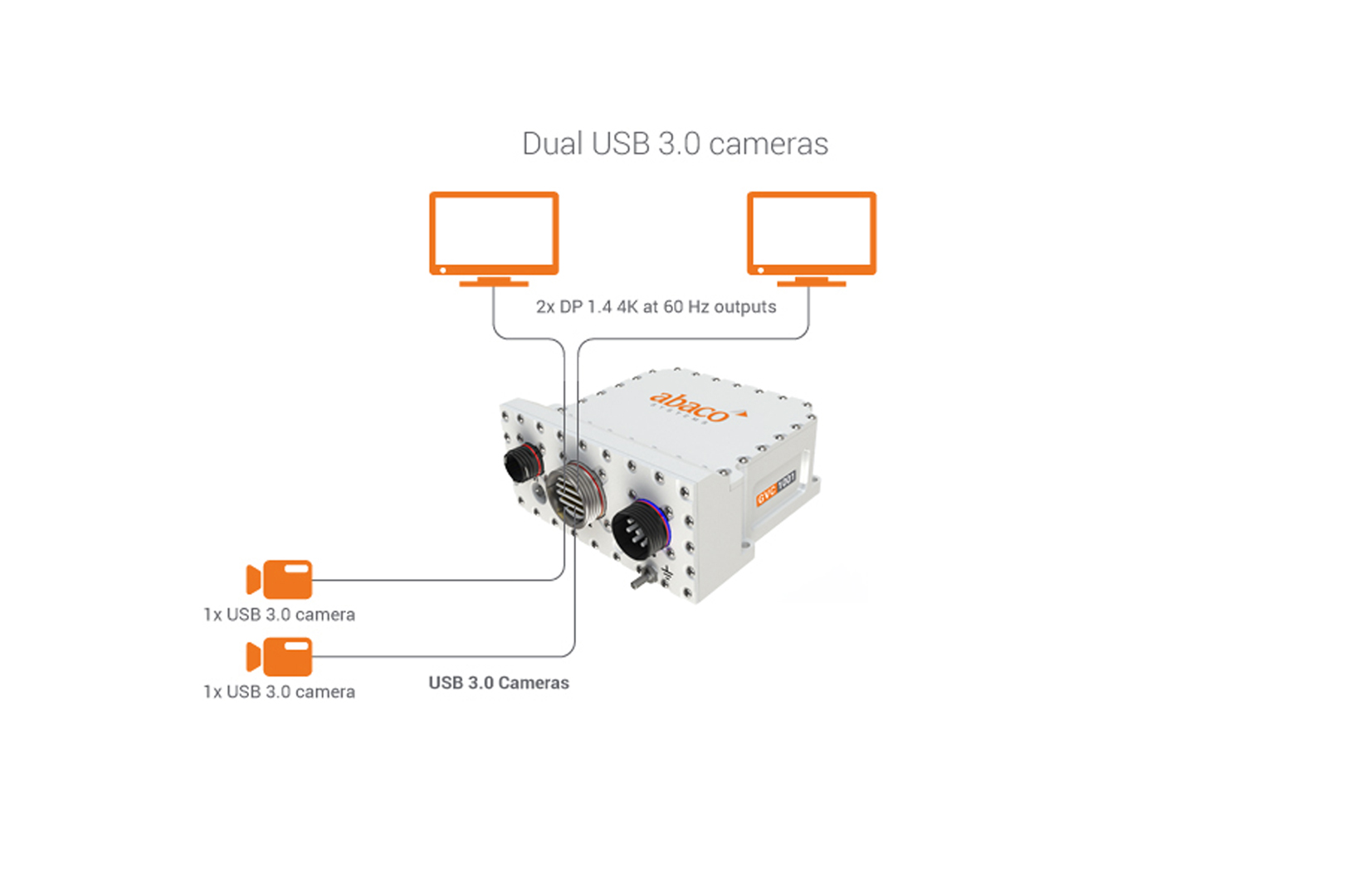

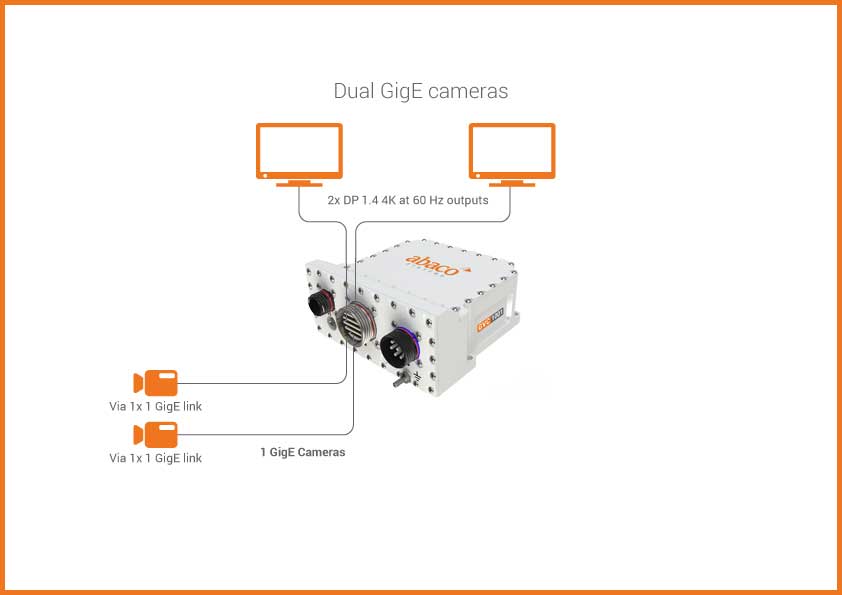

Dual 10 Gigabit Ethernet ports, dual 1 Gigabit Ethernet ports, two CANBus interfaces, two DisplayPort connections and two USB 3.0 ports mean the GVC1001 supports multiple camera inputs on almost any platform. The GVC1001 also offers a choice of dual Display Port 1.4 outputs for the latest displays for new platforms, or dual single-link DVI for existing or legacy displays to provide full flexibility while reducing costs of upgrade for existing customers.

High performance hardware, innovative software

The GVC1001 is supported with three software offerings, so that customers can select the software package best suited to their specific needs.

  • Baremetal SDK for a basic product composed of Linux for Tegra support, additional drivers, NVIDIA® CUDA® toolkit and associated libraries
  • Image Processing SDK: Abaco's AXIS ImageFlex and EventView for accelerated image processing and manipulation
  • Autonomy SDK: for advanced Image processing and autonomy package with Integration to the Robot Operation System API


Specifications

Application
Video & Graphics
Cooling
Base Plate
Environmental
MIL-STD-810G
Form Factor
Small Form Factor Package
I/O
CANbus, DisplayPort, USB, USB 2.0, USB 3.0, 10 Gigabit Ethernet, UARTs, Audio I/O and GPIO, 2x SL-DVI output ports
Maximum Storage
256 GB NVMe SSD
Military Specifications
MIL-STD-810G
Operating System (OS) Support
CUDA, Linux
Operating Temp
-40˚C to +71˚C
Processor
GPU: 512-core Volta GPU with Tensor cores, CPU: 8-core ARM V8.2 64-bit CPU, SoM: NVIDIA Jetson AGX Xavier
Ruggedization
Rugged, Base Plate Cooled

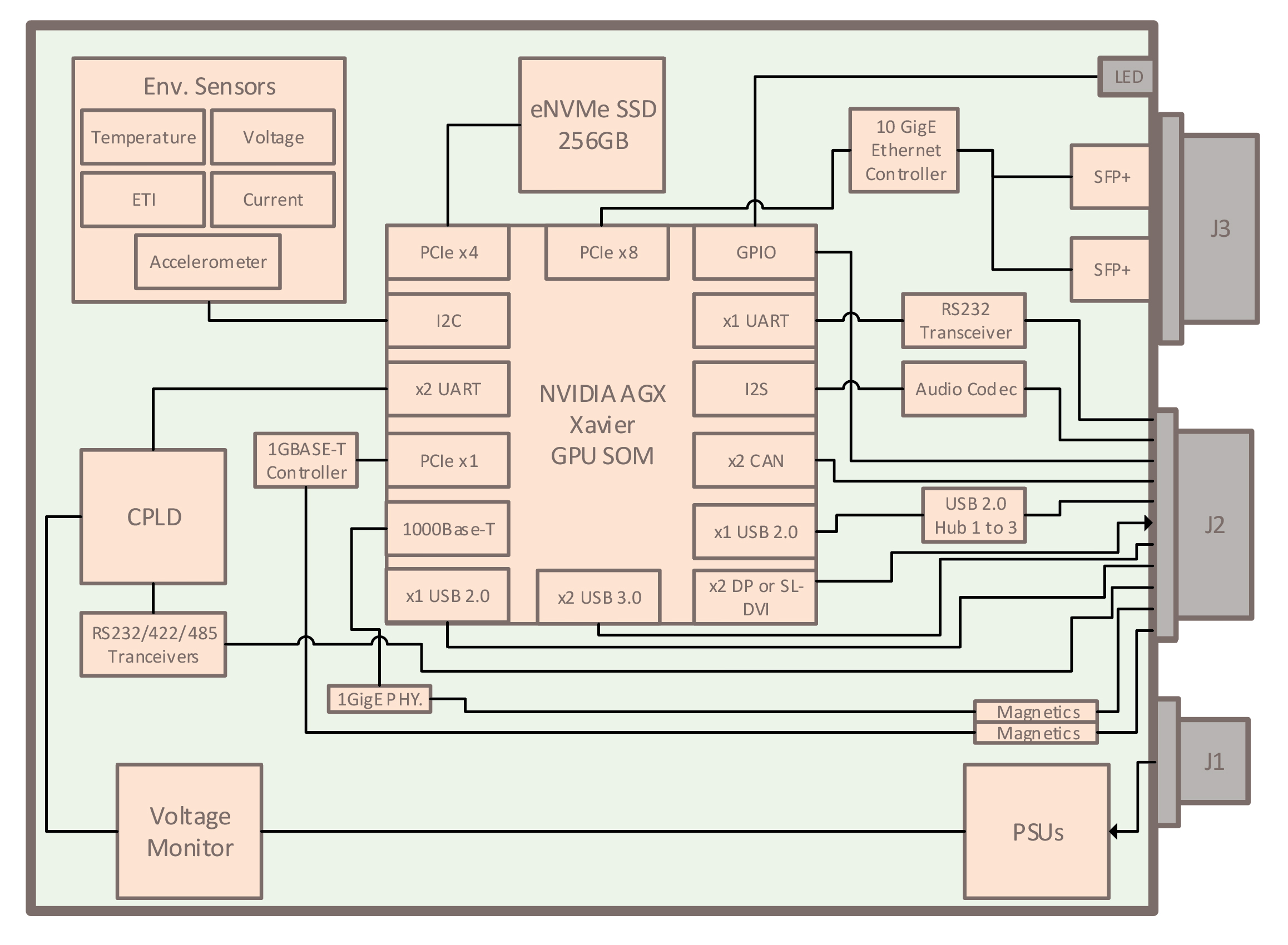

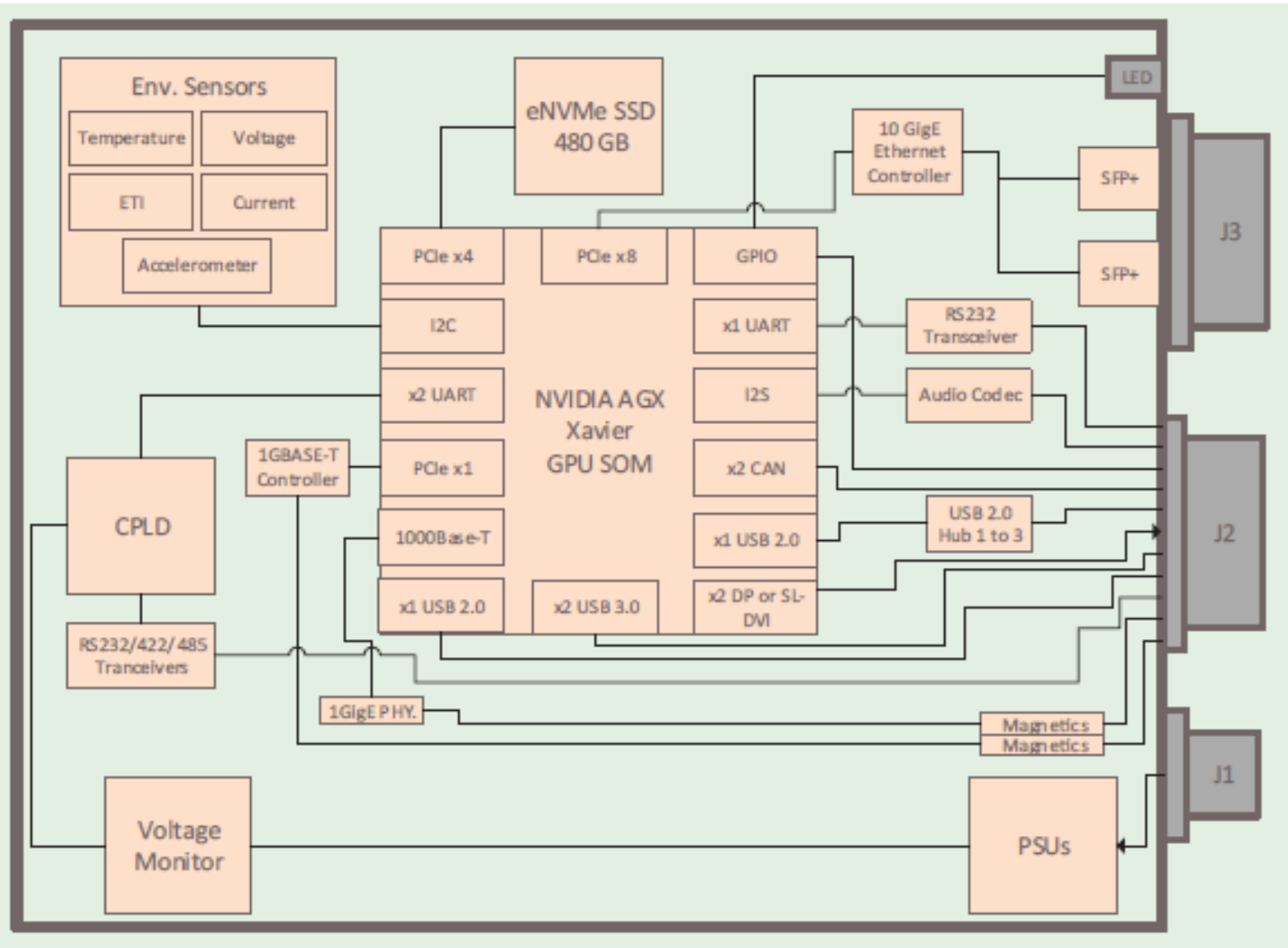

Block Diagram
