Overview
New Technology with Open Architecture

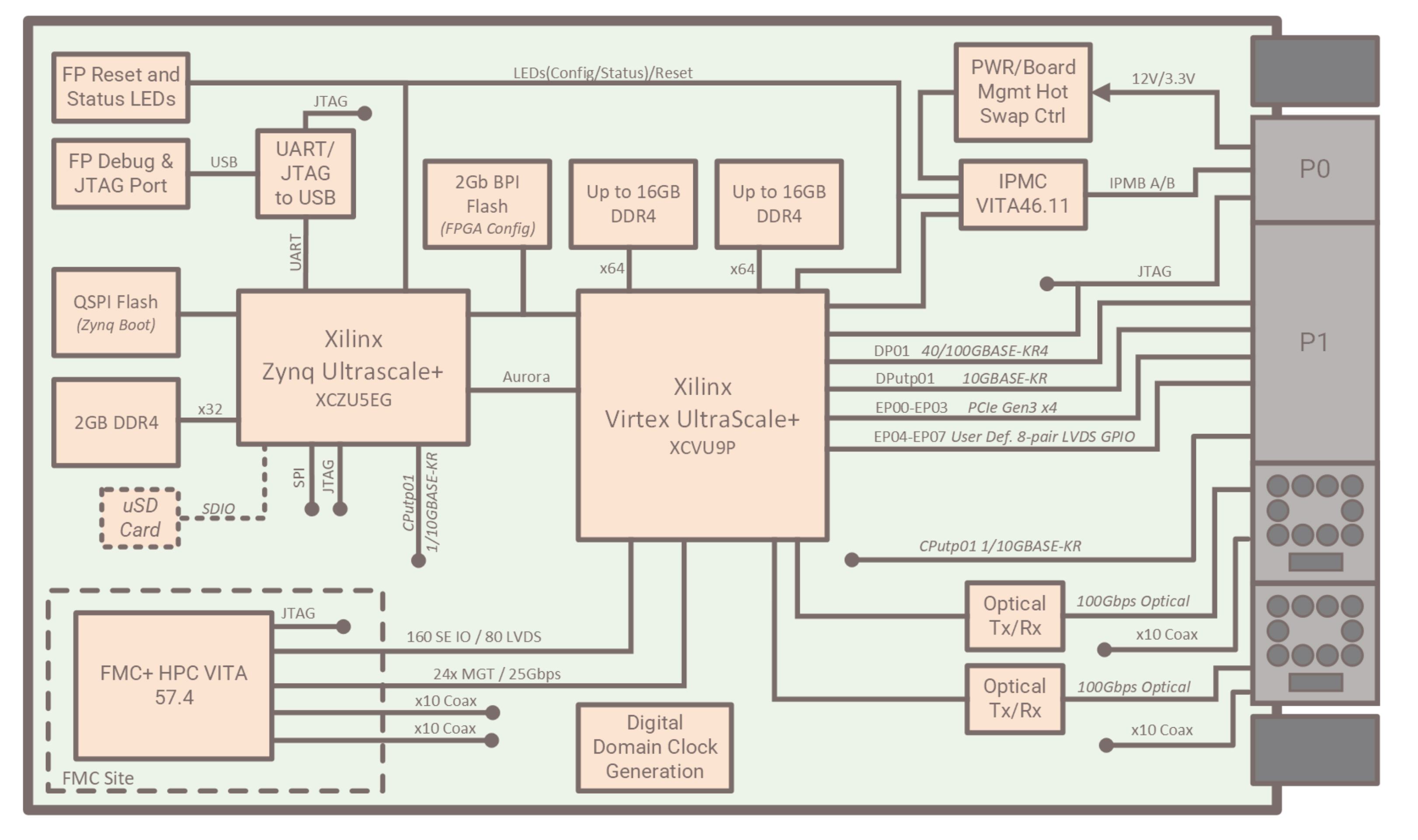

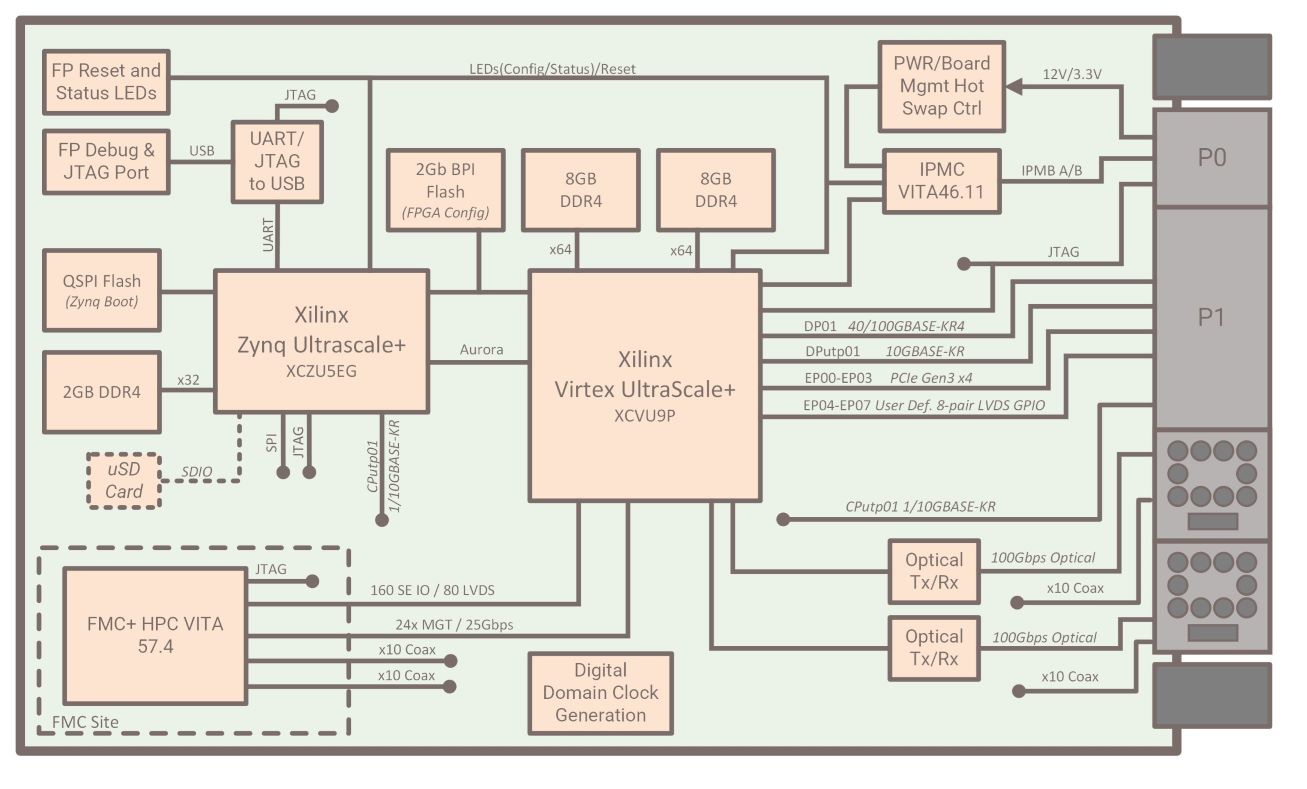

The VP891 is a 3U VPX high-performance FPGA processing board featuring Xilinx® Virtex UltraScale+™ and Zynq® UltraScale+™ technology. This combination excels at both general-purpose processing and streaming DSP, sometimes eliminating the need for a separate SBC. With its advanced encrypted bit streams and secure boot capability, the VP891 an ideal solution for solutions requiring a high level of security.
Aligned with the RF payload slot profile of the SOSA standard, it is designed for the most demanding, mission critical military/defense and commercial applications such as communications, sensor processing, radar, electronic warfare, autonomous vehicles, renewable energy stations and semiconductor processing equipment, just to name a few.
Flexible and Efficient
The VITA 57.4-compliant FMC+ site allows users to take advantage of Abaco’s industry-leading FMC I/O portfolio, enabling engineers to easily upgrade to future technology. Availability of both low-latency LVDS data bus and JESD204B/C high-speed serial interface makes the VP891 a versatile solution for many RF data acquisition applications.
Offload Data More Efficiently
The VP891 supports 40 and 100GbE data plane, PCIe Gen3 x4 expansion plane, and Ethernet control plane connections to a host computer or other payloads. Dual channel 100GbE optical interfaces are optionally available to support up to 25GB/s data transfers to and from the VP891.
High-speed RF signals can also be transferred directly between the FMC+ and the backplane through the P2 connector. Optional MORA, VITA 49.2, REDHAWK and GNU Radio support is available, providing and increased level of system flexibility and capability by taking advantage of future technology upgrades, portability, upgradeability and interoperability.
