RQVME2-1553 Interface

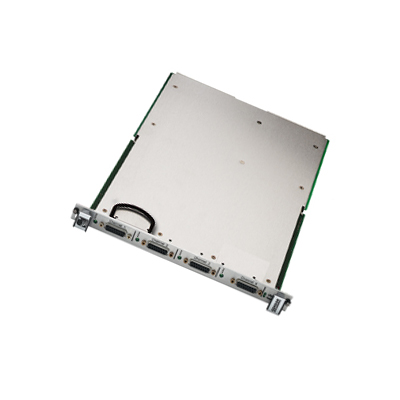

RQVME2-1553 MIL-STD-1553 6U VME Interface
Avionics RQVME2-1553

Overview

The RQVME2-1553 provides new levels of performance and flexibility for MIL-STD-1553A and B Notice II on the VMEbus. Available in commercial, industrial and conductively cooled versions with one, two or four dual-redundant channels, the RQVME2-1553 includes advanced API (Application Programming Interface) software that reduces application development time. Standard features include selectable transformer or direct coupling, 1 Mbyte of RAM per channel, 45-bit message time-tagging, triggers, extensive BC & RT link-list structures, error detection/injection, advanced BC functionality, automatic/manual RT Status Bit and Mode Code responses plus IRIG receiver/generator capabilities.

  • 100% compatible with QVME-1553
  • RoHS compliant
  • Multi-function and single-function versions
  • High-level API for Windows® and VxWorks® included (contact the factory for supported operating system versions)
  • Simultaneous Bus Controller, 31 Remote Terminals and Bus Monitor
  • 1, 2, or 4 dual-redundant MIL-STD-1553 A/B Notice II channels


Specifications

# Discretes:
4
Analyzer
BusTools
Application
Lab, Simulation, Test
Channels
1, 2, 4
Form Factor
VME 6U
IRIG Time Code Option
Yes
Operating Mode
Dual/Multi-Function
Temp Range
Commercial XT
Variable Voltage
Yes
