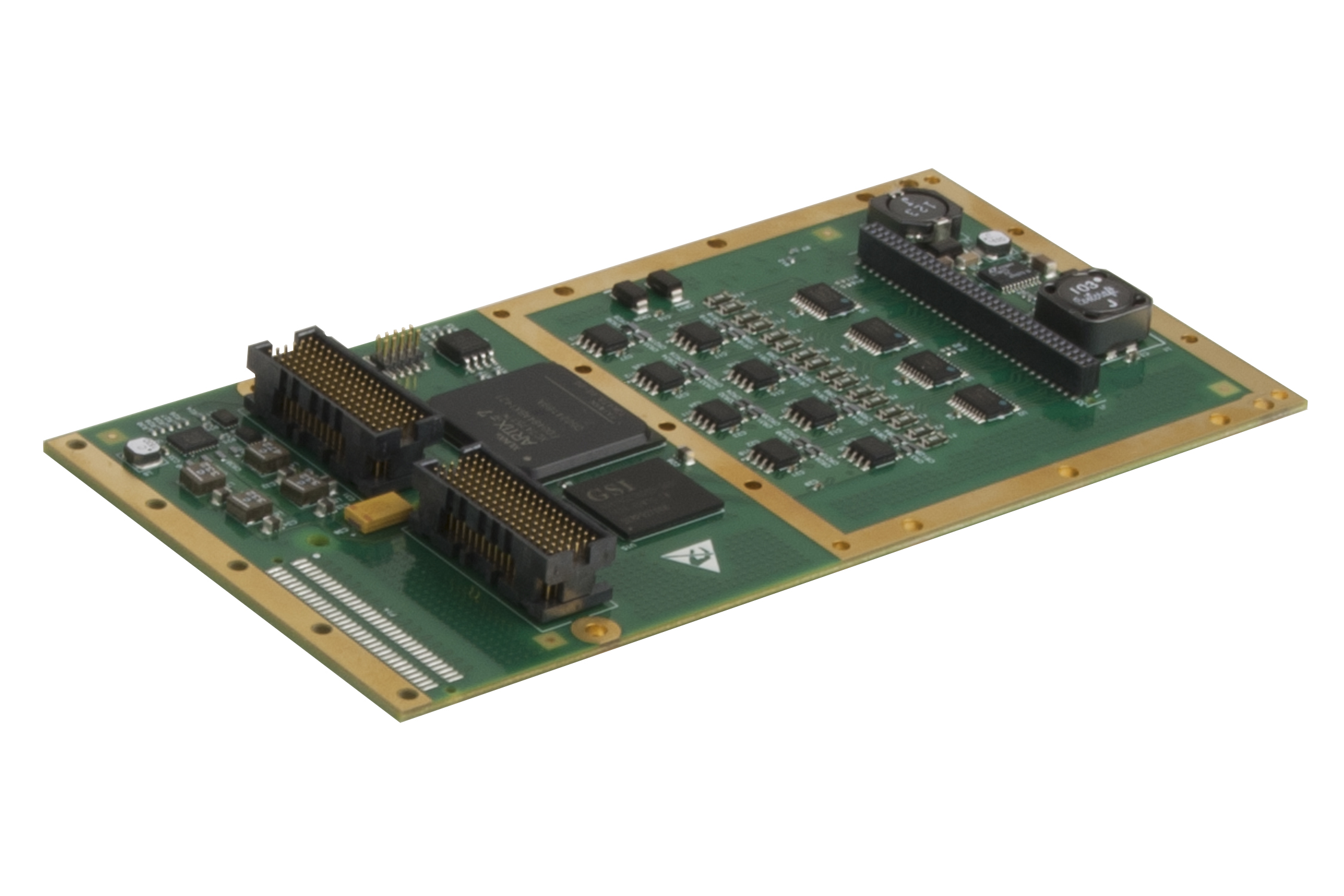

RAR-XMC Interface

Complete, integrated databus functionality for ARINC 429

Overview

Next Generation XMC can be used for development or deployment

Designed for embedded, laboratory and simulator applications, the RAR-XMC supports maximum data throughput on all channels while providing onboard message scheduling, label filtering, multiple buffering options, receive message time-tagging and error detection, and IRIG-B receiver (AM or DC/TTL) and generator (DC/TTL).



Programmable transmit/receive channels provide optimum application flexibility

Up to 16 transmit and 32 receive channels are available, with configurations supporting fixed and software-programmable transmit/receive channels. This allows developers to use the same card for dynamic channel demands.



Configurations with support for ARINC 717 are optionally available. Dual-mode functionality supports either ARINC 717 HBP (Harvard Bi-Phase) or BPRZ (Bi-Polar Return to Zero) across a range of bit rate/sub-frame combinations.



Software tools minimize integration effort, shorten time to implementation

Abaco Systems’ software tools and solutions significantly reduce the time required to integrate ARINC 429 and other avionics protocols into an application. Included with the RAR-XMC is Abaco Systems’ flexible, high-level, API (Application Programming Interface) support for (32-bit/64-bit) Windows® 7, 8, 8.1, 10, Server 2012 R1/R2, Server 2008 R2, 32-bit XP, VxWorks® and Linux® Kernel Versions 2.6, 3.x and 4.x. This powerful API supports multiple cards, and is compatible with Abaco Systems’ API support on PCI, PCI Express®, Mini-PCIe, PC/104-Plus, Express Card, CompactPCI / PXI, and PMC platforms.



Specifications

# ARINC Channels:
Up to 16 transmit and 32 receive channels
Application
Development, Lab, Simulation, Test, Embedded
Form Factor
XMC
Protocol
429, 573, 575, 717, 582 2-wire
Ruggedization
Conduction Cooled
Temp Range
Commercial XT
