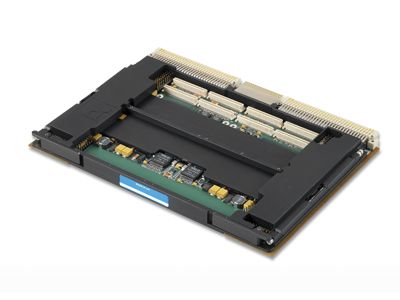

XtraPower PPCM2

6U VME Dual Power Architecture 7448

XtraPower PPCM2

This product reached the end of its lifecycle (end-of-life) on June 23, 2013

Please refer to downloads section below if you require documentation or software. If you have any questions or require product support, including help migrating to our latest products, please contact us.
To see all end of life products CLICK HERE.

We recommend the following alternative solutions:

Overview


PPCM2 6U VME SBC features enhanced high bandwidth inter-board communications via 2eSST VME and onboard StarFabric. This single board computer is ideal for a wide range of high performance computing, real-time applications. Each compute node features the Power Architecture 7448 processor and Discovery III Integrated System Controller supporting high capacity DDR SDRAM , Flash memory and NVRAM. In addition each node supports its own dedicated I/O resources including GPIO, Serial and Gigabit Ethernet plus its own PCI-X-capable PMC. Shared resources include further GPIO and USB 2.0 plus 2eSST VME and two StarFabric ports.





  • Five ruggedization levels, air- and conduction-cooled
  • 6U VME SBC
  • Two independent processor nodes
  • 2x Freescale Power Architecture 7448 @ 1.4 GHz
  • 2x PMC slots
  • For Ruggedization Levels, please see the configuration guide under the downloads tab
  • P0P2X600 Rear Transition Module





Specifications

Form Factor
VME 6U
Processor
Dual 7448 @ 1.4 GHz
# Expansion Slots
2
Maximum Memory
2x 1 GB DDR SDRAM with ECC
Serial I/O
4
Transition Modules
P0P2X600
Bus Interface Chip
Tundra Tsi148
Ethernet
Gigabit Ethernet
Ruggedization
Level 1-5 Air, Conduction Cooled

Accessories

P0P2X600 - This accessory is no longer recommended. See below for newer designs.

P25X606G - P2 Rear Transition Module (RTM) for PPCx series cards.

P09AIO-11 - Module is a customised interface adapter, compatible with Type B P0 connectors. It fits directly onto the rear P0 position of the backplane and is suitable for interconnection with PPC9A host processor card.
