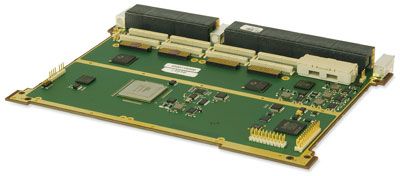

PEX442 Carrier Card

6U VPX Mezzanine Carrier Card with non-blocking Gen 2 PCI Express switch with four x4 ports to the backplane
PEX442

This product entered a Restricted Production Phase (RPP) on October 31, 2022

Please refer to downloads section below if you require documentation or software. If you have any questions or require product support, including help migrating to our latest products, please contact us.
To see all end of life products CLICK HERE.

Overview

The PEX442 Mezzanine Carrier Card allows designers the flexibility to extend and expand the IO capability of their systems by supporting high bandwidth links to combinations of XMC, PMC and AFIX (Additional Flexible Interface Xtensions) modules using PCI Express infrastructure.

Designed to complement Abaco's range of SBC (Single Board Computer) and Multi Processor boards, the PEX442 supports up to two PMC/XMC modules and a further AFIX module.

Each PMC/XMC mezzanine site supports either a PMC with a high speed (133 MHz/64-bit) PCI-X interface or an XMC with a high speed (x8 lane) PCI Express interface. I/O may be routed from either the PMC or XMC connector to the backplane (in accordance with VITA 46.9).

  • 6U VPX and VPX-REDI form factors with optional front and rear side covers for 2 Level Maintenance requirements
  • Supports up to three mezzanines
    • 2x PMC/XMC modules
    • 1x AFIX module
  • Mezzanine I/O routed to VPX backplane
  • Non-blocking Gen 2 PCI Express switch with four x4 ports to the backplane
  • Air and conduction cooled variants


Specifications

Capacity
2 PMC/XMC, 1 AFIX
Fabric Interface
PCIe
Form Factor
VPX 6U
Mezzanine
2x PMC/XMC

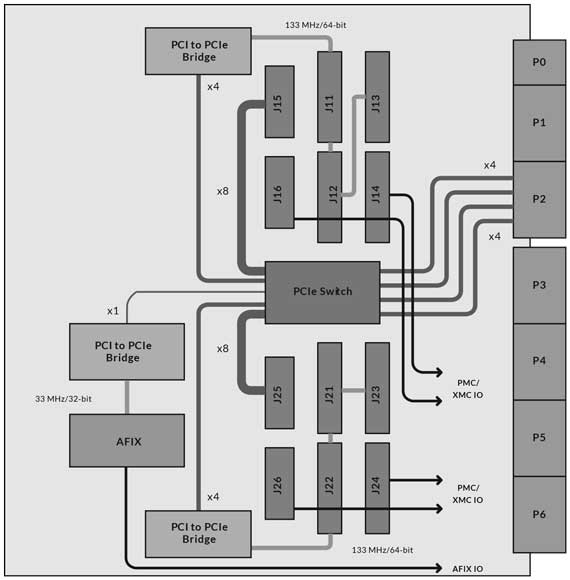

Block Diagram
