Overview

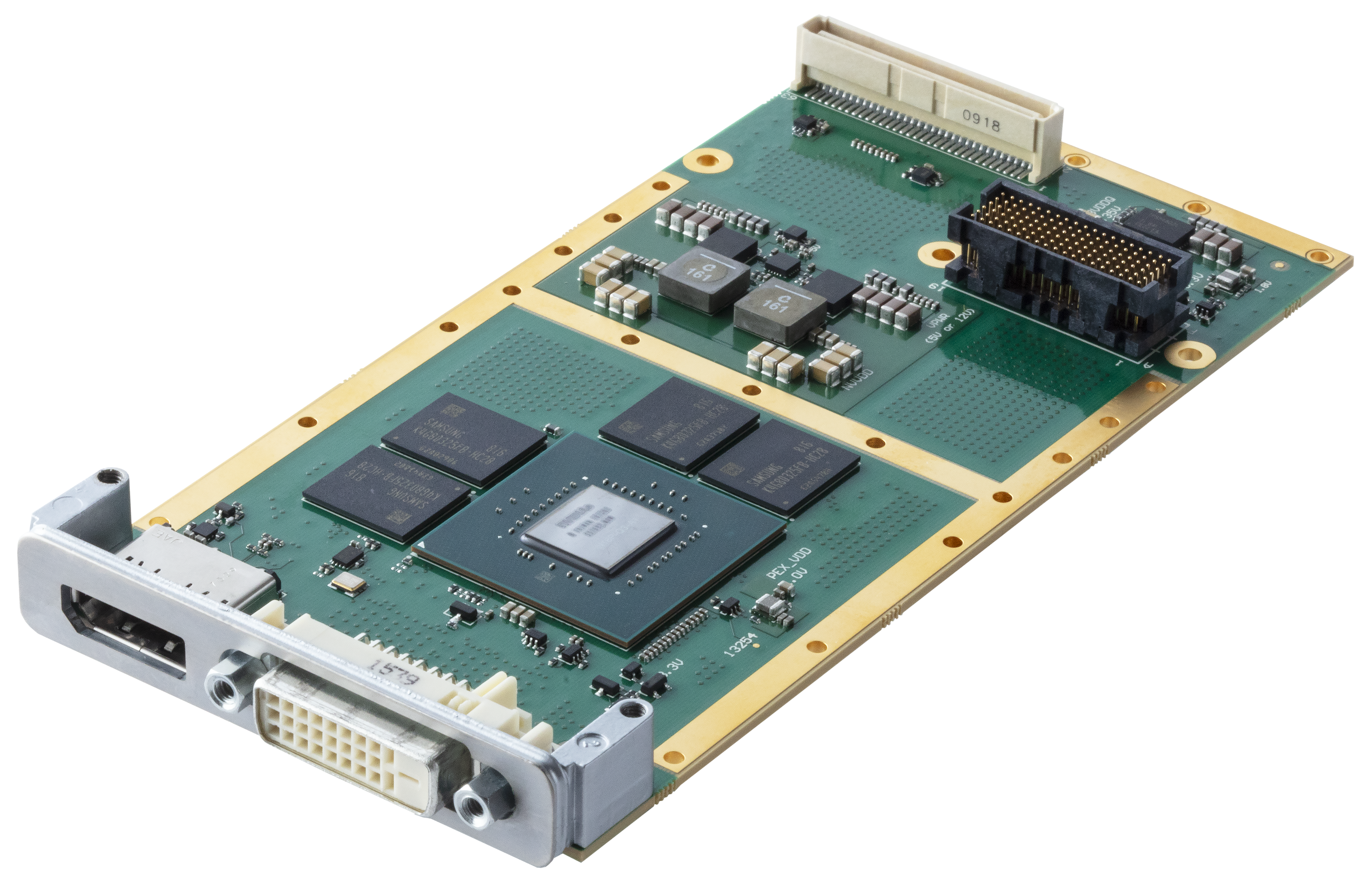

The NVP2000xPF is a rugged XMC graphics and GPGPU card featuring the NVIDIA Pascal Quadro P2000 GPU with 768 CUDA cores and 4 GB GDDR5 memory. It delivers up to 2.3 TFLOPS FP32 performance and supports CUDA and OpenCL. The card includes H.265/H.264 hardware encode/decode, NVIDIA GPUDirect RDMA, and offers multiple video outputs (Dual-Link DVI and DisplayPort.)
Software support
Windows and Linux drivers are provided for x86 based platforms. The GRA116SETH also supports the NVIDIA software stack for the P2000 GPU including the CUDA, Open CL, DirectX12, Open GL, H.264/H.265, etc.
Specifications
Chip Set:
NVIDIA Pascal Quadro P2000
Conformal Coating
No
Cooling
Air, Conduction
Extended Temperature Range
From -40° to +75°
Form Factor
XMC
Video Output
Front Panel: One Dual-Link DVI-D* & One DisplayPort++ Rear Pn4 PMC I/O: One Dual-Link DVI-D* & One Single-Link DVI-D

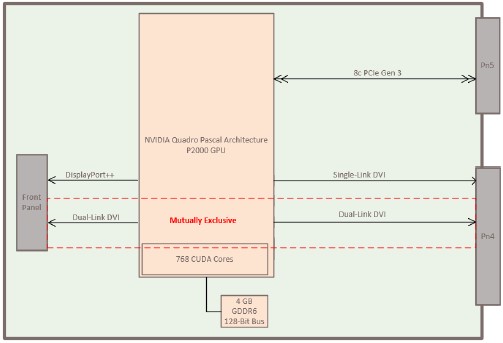

Block Diagram
