NVA2000xX

XMC Video Graphics & GPGPU Card based on NVIDIA Quadro P2000 GPU
NVA2000xX

Overview

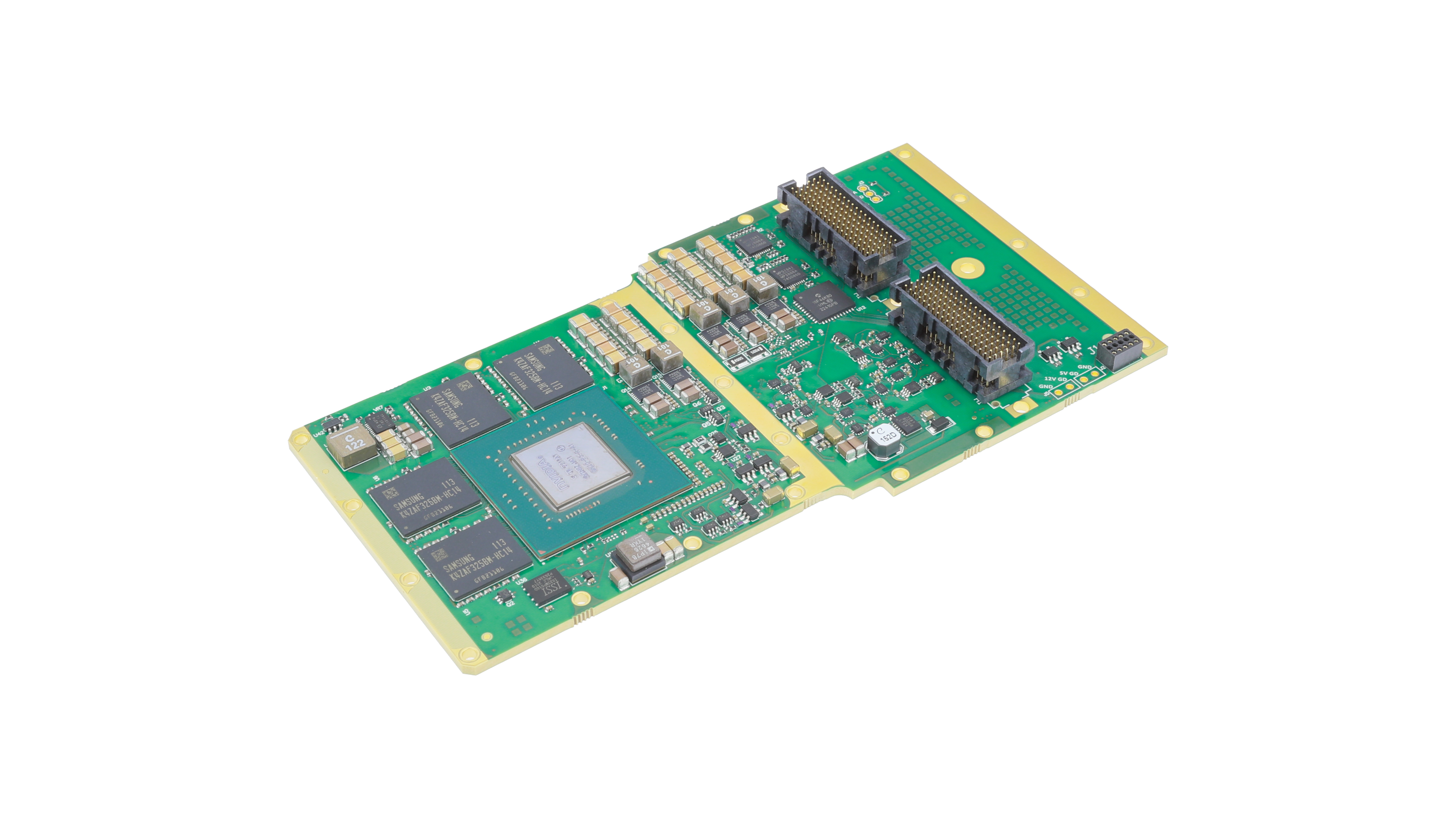

The NVA2000xX is a rugged XMC video graphics and GPGPU card powered by the NVIDIA Ampere A2000 GPU. It features 8 GB GDDR6 memory, 2,560 CUDA cores, 80 Tensor cores, and 20 RT cores, delivering up to 8.5 TFLOPS FP32 performance. The card supports four DisplayPort++/DVI video outputs and includes H.265/H.264 hardware encoding and decoding capabilities. It is designed for high-performance applications in military, avionics, surveillance, UAVs, and naval systems, supporting CUDA and OpenCL for AI processing and deep learning.

Software support

Windows and Linux drivers are provided for x86 based platforms. The NVA2000xX also supports the NVIDIA software stack for the A2000 GPU including the CUDA, Open CL, H.264/H.265, etc.



Specifications

Chip Set:
NVIDIA Ampere RTX A2000
Conformal Coating
Yes
Cooling
Air, Conduction
Extended Temperature Range
From -40° to +85°C
Form Factor
XMC
Video Output
Four DisplayPort++/DVI Rear Pn6 XMC I/O. VITA 46.9 x12d+x8d+24s

Block Diagram
