NETernity™ RM981RC Ethernet Switch

6U VME 12- or 24-port unmanaged Layer-2 Gigabit Ethernet Switch
NETernity™ RM981RC Ethernet Switch

This product entered a Restricted Production Phase (RPP) on February 28, 2020

Please refer to downloads section below if you require documentation or software. If you have any questions or require product support, including help migrating to our latest products, please contact us.
To see all end of life products CLICK HERE.

We recommend the following alternative solutions:

Overview

Gigabit Solution for VME Systems

The RM981RC is a full wire speed, non-blocking Layer 2 switch providing Gigabit solutions for VME systems. It provides 12- or 24 ports of Gigabit Ethernet routed to the front panel.  The ports can be 10/100/1000BaseT, 1000BaseSX or 1000BaseLX, and can be a mix of media types to support a variety of customer connectivity requirements.  The RM981RC is available to support industrial temperatures as an option and can be conformal coated.

Support for copper, fiber or both

All 8, 12 or 24 ports are routed to front panel I/O and can be 10/100/1000BaseT, 1000BaseSX or 1000BaseLX. Mixing and matching of fiber and copper media in groups of four is supported.

Flexible

The RM981RC offers flexibility for system designers. Configuration options include port number, interface type and media, and front panels and conformal coating. In addition, some models can support industrial operating temperatures from -40C to +85C.











Networking

No two networking challenges are the same – which is why our customers value Abaco’s flexible OpenWare switch management software.

More Details

Specifications

Form Factor
VME 6U
Management Type
Unmanaged Layer-2
Port Type
10/100/1000BaseT, 1000BaseLX, 1000BaseSX
Ports
8, 12 or 24

OpenWare

The industry’s most flexible, most customizable, most scalable network management software – with multi-level security and the fastest start-up time.

More Details

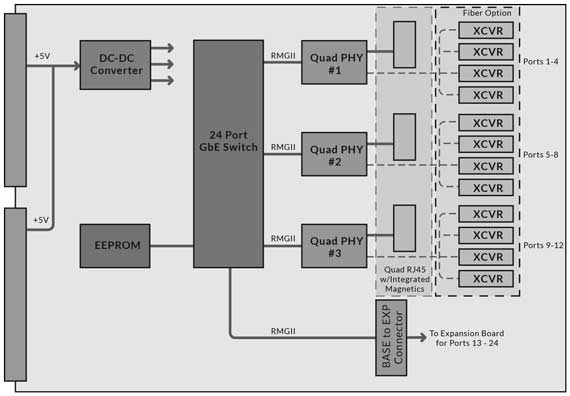

Block Diagram
