AVC-cPCI 3003 Advanced Vehicle Computer

3U CompactPCI rugged computing platform
AVC-cPCI 3003

This product entered a Restricted Production Phase (RPP) on February 1, 2012

Please refer to downloads section below if you require documentation or software. If you have any questions or require product support, including help migrating to our latest products, please contact us.
To see all end of life products CLICK HERE.

Overview

AVC-cPCI 3003 provides a rugged, yet highly flexible COTS computing platform suited for military aviation, civilian aviation, and other applications requiring rock-solid reliability such as UAVs, booster vehicles, and ground vehicles. Manufactured using Electrical Discharge Machining (EDM) and milling, the aluminum alloy (6061-T6) is strong, lightweight, and resistant to EMI. Instead of a wiring harness, the AVC reduces weight and increases reliability by using a lightweight printed circuit board (PCB) to route all internal I/O to the external front panel.

At 5.0" H x 8.73" W x 9.54" L, the 100 watt, 3U cPCI 6 slot configuration provides a pair of 2nd generation CM4 Power-PC processors, 24 channels of RS-232/422/485 high speed serial, 4 dual redundant 1553 channels, 16 channels of ARINC 429, 1394, 24 open/ground inputs, 16 open/ground outputs, and 32 TTL I/O. The AVC-cPCI 3003 weighs under 11 lbs and dissipates less than 43 watts of power via conduction cooling.





  • Compact-for use in small spaces
  • Six, 3U cPCI slots

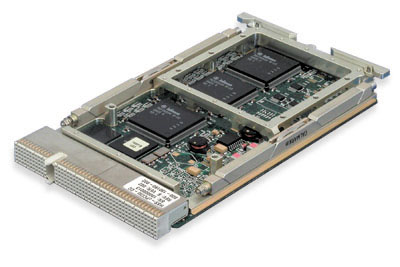

  • CM4 Single Board Computer with 750/755 400-500 Mhz processor, two 1 MB L2 Cache, 1.6 GB/s, up to 512 MB, 100 MHz SDRAM with ECC, and VxWorks/Integrity support
  • Lightweight-Less than 11 pounds (4.9 kg) including modules





Specifications

Form Factor
cPCI 3U
Power Supply
16-40 VDC, 100W
Slots
6
