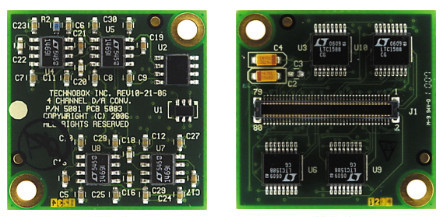

5081 MMS ECM, Analog

Modular Micro Mezzanine System™ Electrical Conversion Module (ECM) Digital to Analog - 4 Channel 12 bit with Multiple Output Range (RoHS Compliant Lead-free)
DOWNLOAD DATASHEET
REQUEST A QUOTE
Overview
Specifications
Downloads
Request A Quote

This product entered a Restricted Production Phase (RPP) on July 18, 2022

Please refer to downloads section below if you require documentation or software. If you have any questions or require product support, including help migrating to our latest products, please contact us.
To see all end of life products CLICK HERE.

Overview

The 5081 provides four channels of 12 bit digital to analog voltage output, with multiple single ended output ranges. Each channel is software selectable for 0 to +5V, 0 to +10V, +/-2.5V, +/-5V, +/-10V or -2.5 to 7.5V ranges. The outputs reset to 0.0 volts on power up.

Specifications

Features
Software selectable output voltage ranges
Function
DAC
Technical Parameters
4 channel, 12-bit, 100KHz
