XVR15 VME SBC

6U single board computer with 3rd Generation Intel Core i7 processor
XVR15

This product entered a Restricted Production Phase (RPP) on July 27, 2019

Please refer to downloads section below if you require documentation or software. If you have any questions or require product support, including help migrating to our latest products, please contact us.
To see all end of life products CLICK HERE.

We recommend the following alternative solutions:

Overview

Broadens performance choice

The XVR15 6U VME rugged single board computer (SBC) utilizes the highly integrated 3rd Generation Intel Core i7 processor platform to help new programs achieve the optimum combination of throughput and cost for their application while minimizing the long term cost of ownership for customers by providing a straightforward, cost-effective upgrade path.

Proven Intel architecture

Building the XVR15 around Intel’s 3rd Generation Core i7 processor allows Abaco Systems to offer integrated graphics and memory controller plus dual- and quad-core processing all in one device. In addition to up to 20% (compute) and 30% (3D graphics) performance improvement over the previous processor generation, the third generation technology also brings Advanced Vector Extensions (AVX) signal processing, intelligent performance on-demand with Intel Turbo Boost technology, PCIe Gen 3 (8 GT/sec) and USB 3.0 (10x the bandwidth of 2.0) data transfer capability, and Hyper-Threading technology.

Ruggedization

The XVR15 is designed to meet the requirements of a wide range of applications from industrial through to fully rugged defense and aerospace programs. It offers extended temperature capability and a range of air- and conduction-cooled build levels.

A rich software choice

The XVR15 includes comprehensive Deployed Test Software (BIT and BCS) plus operating system support for Windows 7, Open Linux, Wind River Linux, and VxWork



10 SBC questions to ask

Not all single board computers are created equal. Find out more about how your current supplier’s offering compares with Abaco’s.

GO TO QUESTIONS

Specifications

AXIS Support
Yes
Bus Interface Chip
Tundra Tsi148
Ethernet
Gigabit Ethernet
Form Factor
VME 6U
Maximum Memory
Up to 16 GB DDR3 SDRAM
Mezzanine
2x PMC/XMC
Processor
3rd Gen. Intel Core i7 dual/quad-core up to 2.5 GHz
Ruggedization
Level 1-5 Air, Conduction Cooled
Serial I/O
3
Transition Modules
VTM26

Board Support

Highly flexible and configurable to deliver the optimum balance of coverage vs. boot time, our in-house expertise enables us to provide program-specific functionality.

More Details

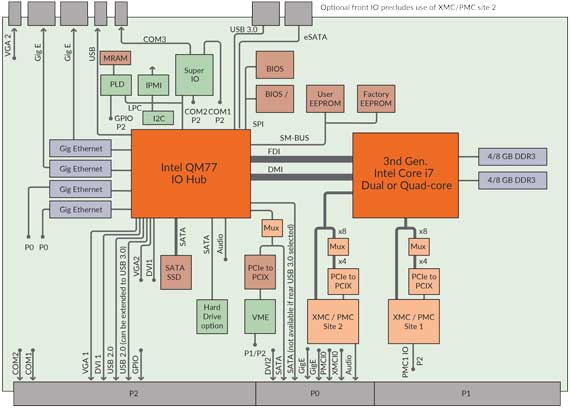

Block Diagram
