VP460

6U VPX Direct RF Processing System with Xilinx Zynq Ultrascale+ RFSoC

VP460

Overview


Next Generation FPGA, Aligned with SOSA Technical Standards

The VP460 is designed to enable customers to begin development of their next generation systems using revolutionary new processor technology. It is in alignment with the SOSA™ Technical Standard to provide the interoperability required by the US Air Force, Army and Navy.

Increased Performance in Less Space

The VP460 is a major step forward in performance and density, enabling the use of fewer boards with increased performance – thus minimizing SWaP - as well as the built-in ability to handle advanced MIMO, beamforming, and many applications such as communications, sensor processing, radar, and electronic warfare.

RFSoC and HBM, All in One

A 6U VPX RF processing system, the VP460 features the transformational Xilinx® Zynq® Ultrascale+™ RF system-on-chip (RFSoC) technology and the latest Xilinx Virtex™ Ultrascale+ High Bandwidth Memory (HBM) FPGA device. The RFSoC ZU29DR device used on the VP460 includes 16 integrated analog-to-digital converters at 2GSPS, 16 digital-to-analog converters at 6.4 GSPS, a user- programmable FPGA fabric, and multi-core Zynq ARM® processing subsystem.

The HBM VU37P device features the speed and capabilities of an UltraScale+ FPGA together with integrated DRAM in the FPGA package, capable of up to 460GB/s data transfer rates on-chip.

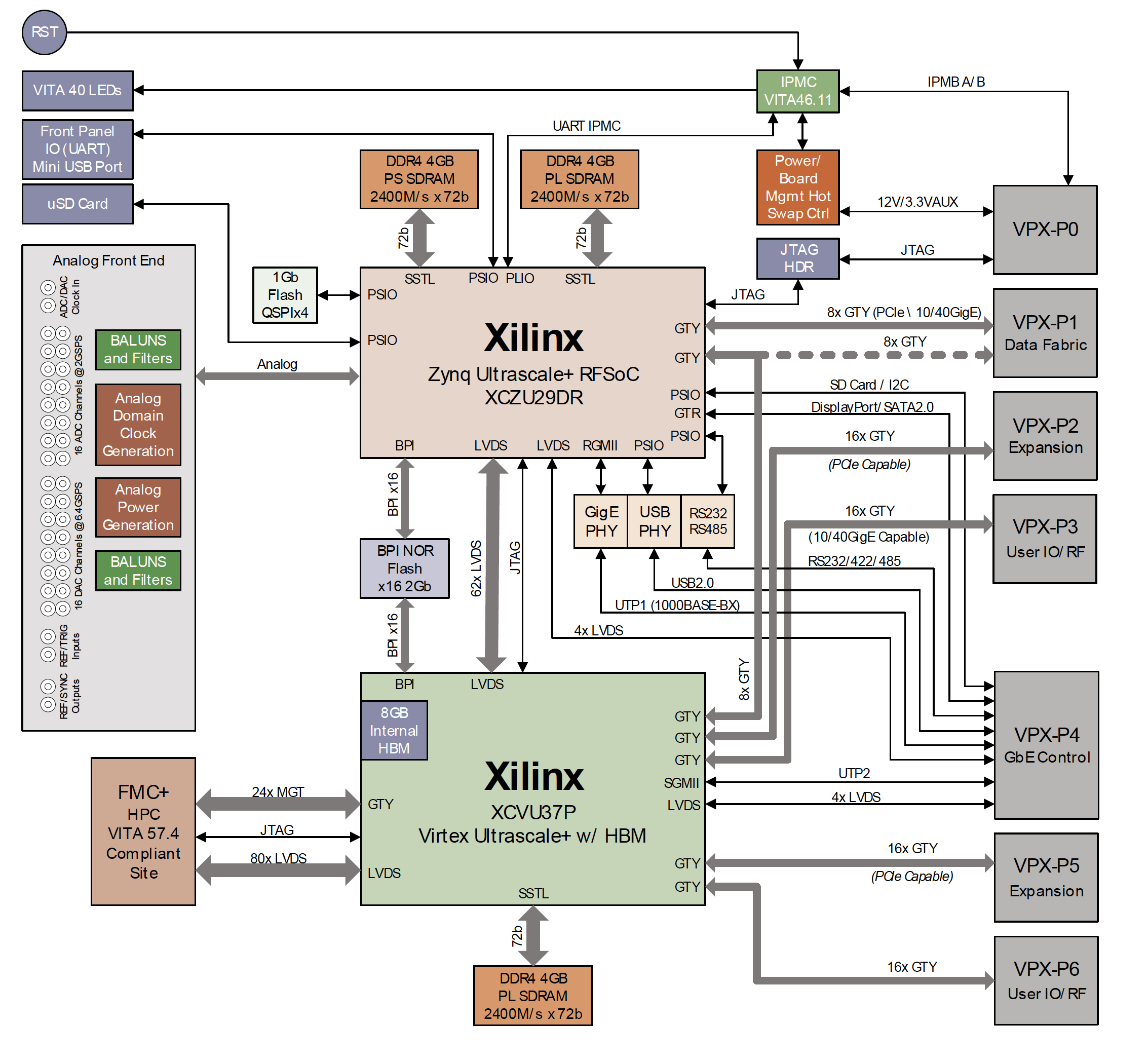

Block Diagram

Specifications

Form Factor
VPX 6U
Cooling
Air
Conformal Coating
Option
Data Rate
2 Gsps input and 6.4 Gsps output
Channels
16 Analog input, 16 Analog output
Operating System (OS) Support
Linux, Windows
Memory
20GB Available
Resolution
12 in, 14 out
FPGA Family
Zynq Ultrascale+ RFSoC + Zynq Ultrascale+ HBM
