This product entered a Restricted Production Phase (RPP) on February 1, 2022

Please refer to downloads section below if you require documentation or software. If you have any questions or require product support, including help migrating to our latest products, please contact us.
To see all end of life products CLICK HERE.

We recommend the following alternative solutions:

Overview

Big performance in a small space

Based on the optimized 4th Generation Intel® Core™ i7 architecture, the VPXcel3 SBC346 in a rugged OpenVPX 3U form factor delivers up to a 15% CPU performance boost over 3rd generation technology; graphics support for DX11.1, OpenCL 1.2, OpenGL 3.2; connectivity with flexible I/O and security – all within the same power envelope as its predecessors. This makes the SBC346 an excellent choice for SWaP-constrained environments such as manned- and unmanned vehicles.

Full speed ahead

The SBC346 offers a x16 PCI Express™ link (Gen3-capable) for maximum bandwidth to high performance peripherals such as GPGPUs, or for multiple high bandwidth links to multiple peripherals using a combination of x4 and x8 PCI Express port

Maximizes the value of investment

The SBC346 provides an optimum upgrade path/technology insertion opportunity for those looking to upgrade from older processing technology. As with Abaco Systems’ other single board computers, the SBC346 provides a cost-effective solution for a wide spectrum of applications through its multiple build variations.











10 SBC questions to ask

Not all single board computers are created equal. Find out more about how your current supplier’s offering compares with Abaco’s.

GO TO QUESTIONS

Specifications

# Expansion Slots:
0
AXIS Support
Yes
Control Plane
1000BASE-T / 1000BASE-BX
Data Plane
PCIe
Expansion Plane
N/A
Form Factor
VPX 3U
Management Plane
BMM (Baseboard Man. Module)
Maximum Memory
Up to 16 GB DDR3 SDRAM
Other
PCIe
Processor
4th Gen. Intel Core i7 quad-core up to 2.4 GHz
Ruggedization
Level 1-5 Air, Conduction Cooled

SWaP

Minimizing size, weight and power is one of the biggest challenges our customers face. That’s why we prioritize it in all our product designs.

More Details

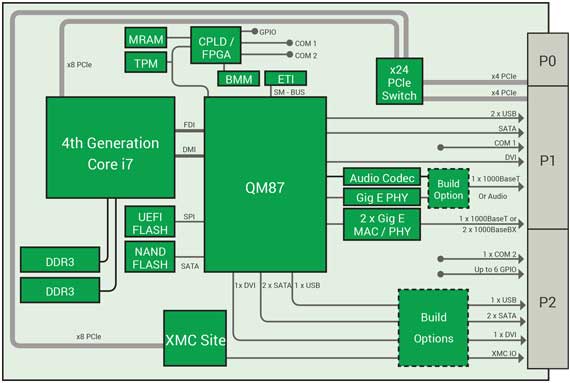

Block Diagram

sbc326_a-ds-1954a-2.jpg sbc326_a-ds-1954a-2.jpg
