SBC325 3U VPX SBC

Rugged single board computer featuring an Intel® Core™ i7 processor

This product entered a Restricted Production Phase (RPP) on July 27, 2019

Please refer to downloads section below if you require documentation or software. If you have any questions or require product support, including help migrating to our latest products, please contact us.
To see all end of life products CLICK HERE.

We recommend the following alternative solutions:

Overview

Full performance at more elevated temperatures

The VPXcel3 SBC325 rugged single board computer is based on the highly integrated 3rd Generation Intel® Core™ i7 processor platform. It brings up to 15% (compute) and 50% (3D graphics) performance improvement over the previous generation to customers using the 3U VPX form factor to develop and deploy demanding industrial and mil/aero applications such as command/control, ISR, radar, sonar and signal processing.

Exceptionally versatile platform

Provision of either a mezzanine XMC/PMC site for optimum flexibility and expandability or a quad fat-pipe (x16 PCI Express™) for highest performance connectivity to GPGPUs makes the SBC325 suitable for a wide range of High Performance Embedded Computing (HPEC) applications.

Rugged from the beginning

Designed to meet the requirements of a wide range of applications, the SBC325 is available in five build levels, from benign (air cooled) to fully rugged (conduction cooled) to provide customers with optimum price/performance.











10 SBC questions to ask

Not all single board computers are created equal. Find out more about how your current supplier’s offering compares with Abaco’s.

GO TO QUESTIONS

Specifications

AXIS Support
Yes
Control Plane
1000BASE-T
Data Plane
PCIe
Expansion Plane
PCIe
Form Factor
VPX 3U
Management Plane
BMM (Baseboard Man. Module)
Maximum Memory
8 GB DDR3 SDRAM with ECC
Mezzanine
1x XMC
Other
PCIe
Processor
3rd Gen. Intel Core i7 dual/quad-core up to 2.5 GHz
Ruggedization
Level 1-5 Air, Conduction Cooled

SWaP

Minimizing size, weight and power is one of the biggest challenges our customers face. That’s why we prioritize it in all our product designs.

More Details

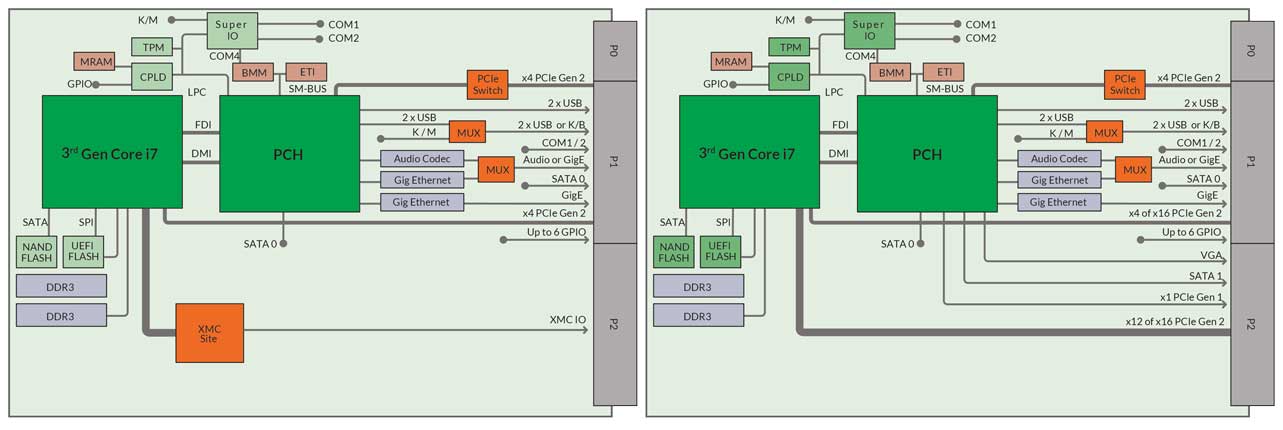

Block Diagram
