P9 graphics processing unit


This product reached the end of its lifecycle (end-of-life) on June 30, 2011

Please refer to downloads section below if you require documentation or software. If you have any questions or require product support, including help migrating to our latest products, please contact us.
To see all end of life products CLICK HERE.

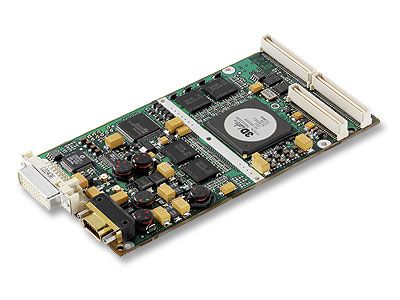

PMCGA3 is the latest in a family of market-leading graphics accelerator cards designed from inception for the defense and aerospace markets. Using the 3Dlabs groundbreaking P9 Visual Processing Unit at its core, it is capable of delivering the highest levels of performance in the rugged marketplace. PMCGA3 is a PCI mezzanine card (PMC) compatible with industrial standard PMC-P1386.1/Draft 2.1, and is available in four ruggedization levels to cater for applications in both benign and harsh environments. The conduction-cooled level 4 product conforms to CCPMC Draft VITA 20-199X. The board is intended for both new programs and technology insertion for existing programs. It is pin compatible with previous Radstone graphics PMCs, and is supported by the same range of high quality software drivers.

  • Air-cooled and rugged conduction-cooled variants
  • DVI 1.0 digital video output
  • RS-170, NTSC & PAL video input and output
  • VESA output resolutions to 1600x1200
  • Two independent output channels
  • 64 Mbytes SDRAM
  • 3DLabs Visual Processing Architecture
  • Leading OpenGL performance
  • Proven software drivers
  • For Ruggedization Levels, please see the configuration guide under the downloads tab


Form Factor
Chip Set
3DLabs P9 VPU
Conformal Coating
Extended Temperature Range
