NVB500xX

Embedded XMC graphics & GPGPU card powered the NVIDIA RTX PRO 500 Blackwell GPU
NVB500xXNVB2000xX

Overview

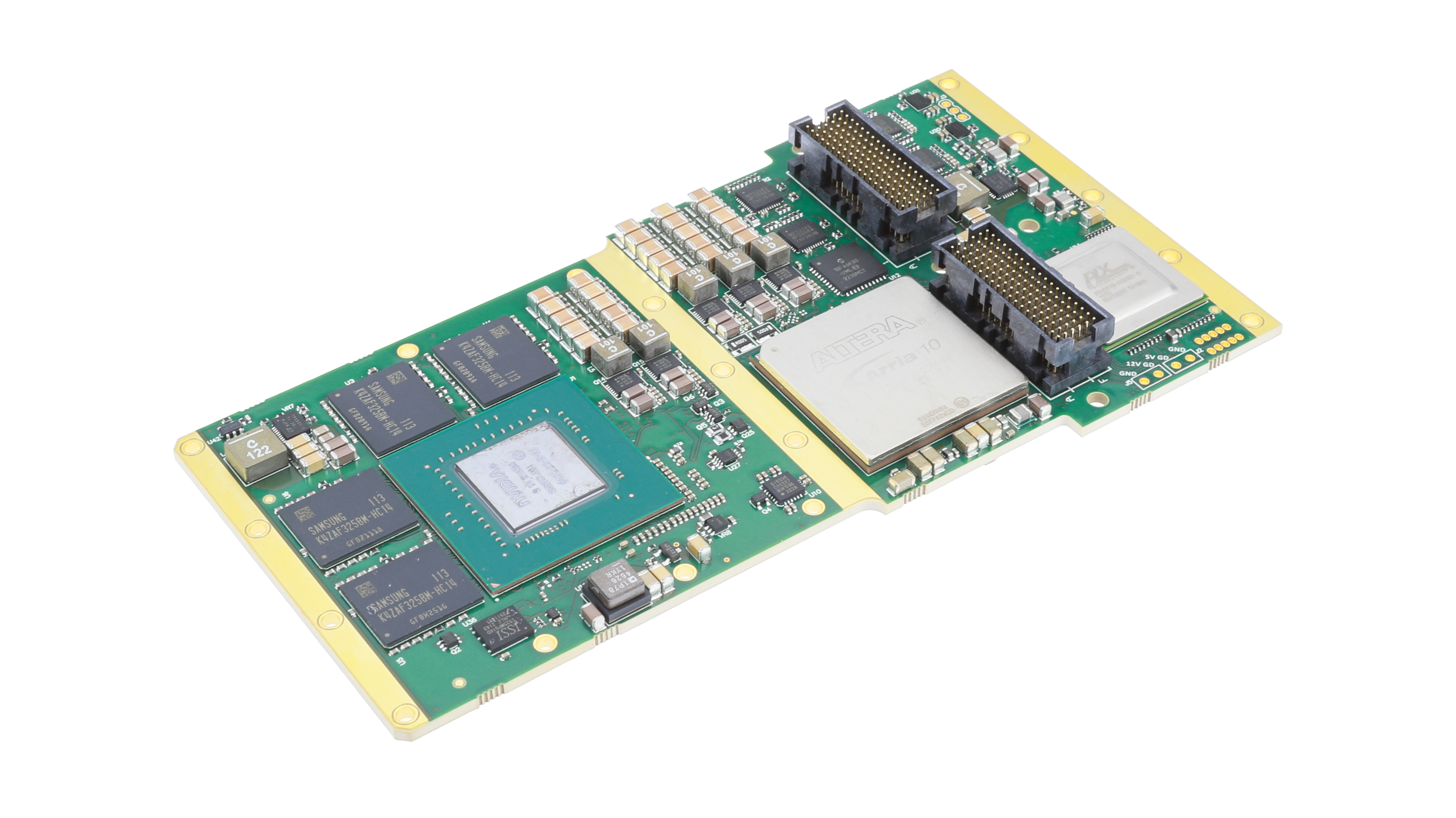

The  NVB500xX is a rugged, high-performance XMC graphics and GPGPU card powered by the NVIDIA RTX PRO™ 500 Blackwell GPU, featuring 1,792 CUDA cores, 56 Tensor Cores, and 14 RT Cores. It supports 6 GB of GDDR7 ECC memory and PCIe Gen 5 for fast data transfer, making it ideal for AI-accelerated computing, deep learning, and real-time analysis in mission-critical environments. The card offers three DisplayPort++/DVI outputs, advanced video encoding/decoding capabilities, and NVIDIA GPUDirect® RDMA for low-latency data handling. Designed for harsh conditions, it meets MIL-STD-810 standards for shock, vibration, temperature, and humidity, and is compatible with 3U/6U VPX systems via VITA 46.9.



Specifications

Chip Set:
NVIDIA RTX PRO 500 GPU
Conformal Coating
N/A
Cooling
Air, Conduction
Extended Temperature Range
From -40° to +85°C
Form Factor
XMC
I/O
3x DisplayPort++/DVI outputs

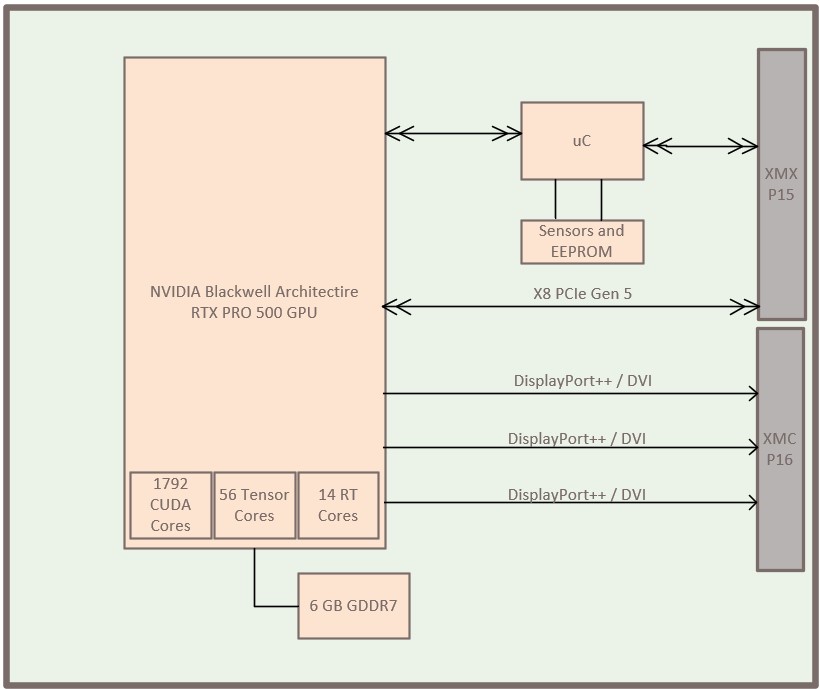

Block Diagram
