NVB2000xX

Embedded XMC graphics & GPGPU card powered the NVIDIA RTX PRO 2000 Blackwell GPU
NVB500xXNVB2000xX

Overview

The NVB2000xX is a rugged, high-performance XMC graphics and GPGPU card featuring the NVIDIA RTX PRO™ 2000 Blackwell GPU, equipped with 3,328 CUDA cores, 104 Tensor Cores, and 26 RT Cores. It supports 8 GB of GDDR7 ECC memory and PCIe Gen 5 for high-speed data transfer, making it ideal for AI-accelerated computing, deep learning, and real-time analysis in mission-critical environments. The card offers three DisplayPort++/DVI outputs and advanced video encoding/decoding with 9th Gen NVENC and 6th Gen NVDEC. It supports NVIDIA GPUDirect® RDMA for low-latency, high-bandwidth data handling and is compatible with 3U/6U VPX systems via VITA 46.9. Designed for harsh conditions, it meets MIL-STD-810 standards for shock, vibration, temperature, and humidity, and supports Windows or Linux platforms with APIs like DirectX 12, OpenGL 4.6, and Vulkan 1.4.



Specifications

Chip Set:
NVIDIA RTX PRO 2000 GPU
Conformal Coating
N/A
Cooling
Air, Conduction
Extended Temperature Range
From -40° to +85°C
Form Factor
XMC
I/O
3x DisplayPort++/DVI outputs

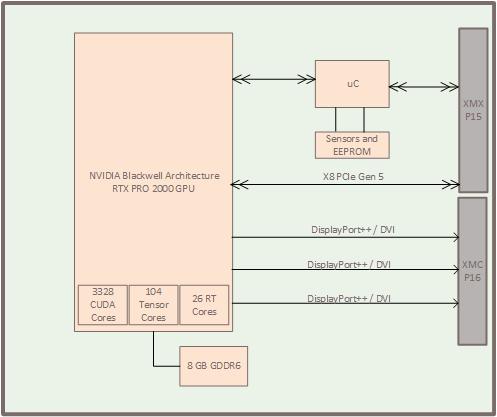

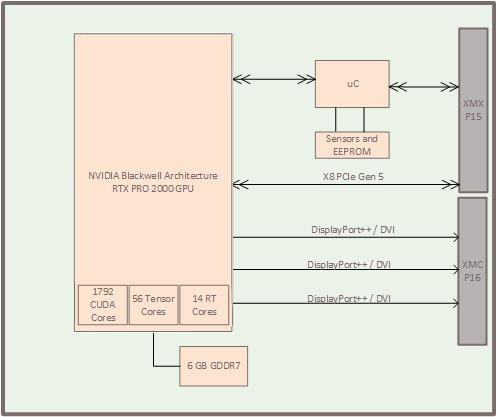

Block Diagram
