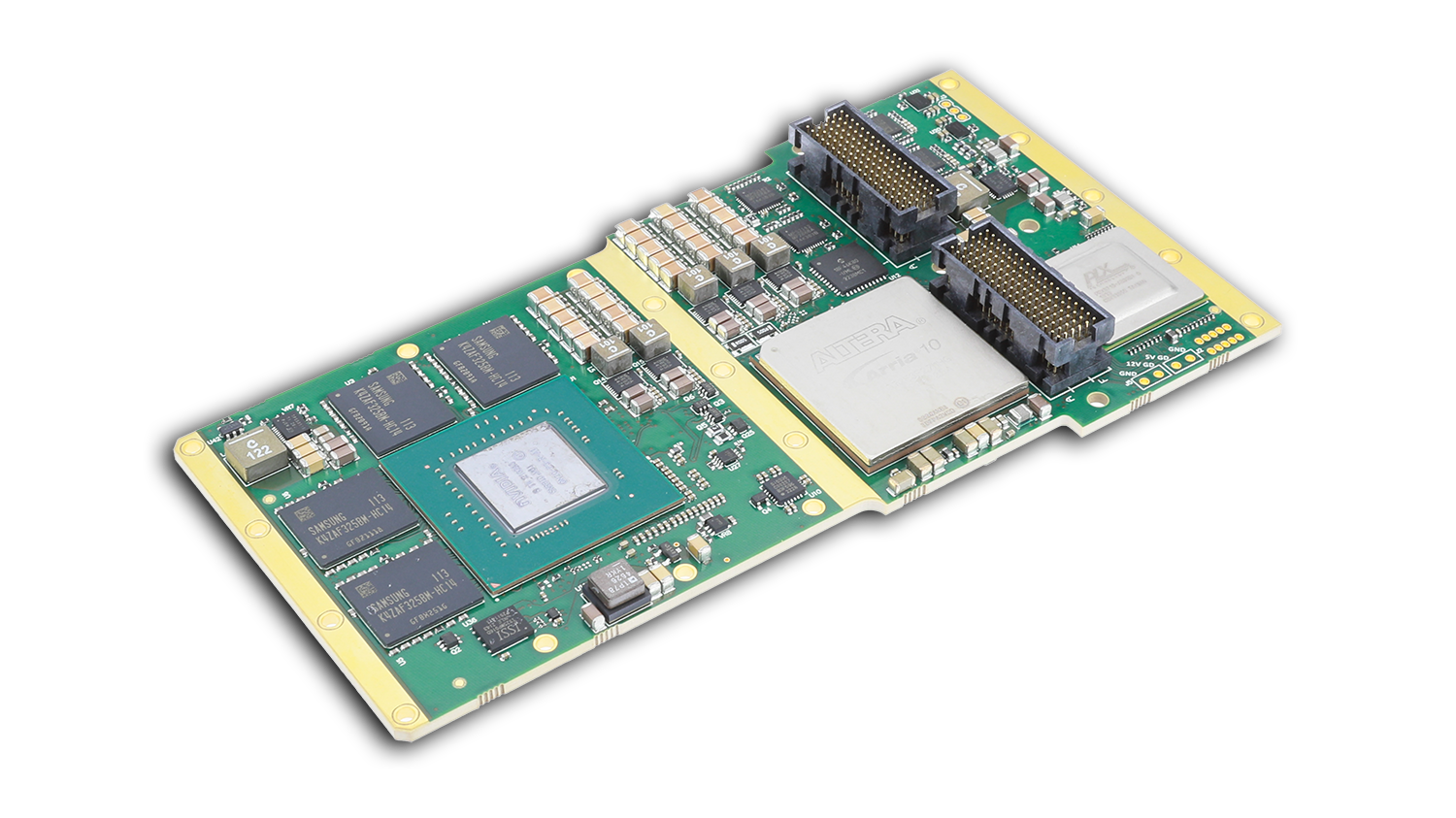

NVA2104AxX

XMC Video Capture & GPGPU Card designed with NVIDIA Ampere A2000 GPU
NVA2104AxX

Overview

The NVA2104AxX is a rugged, high-performance XMC graphics card designed for video capture and GPGPU processing. It features the NVIDIA RTX A2000 GPU with 8 GB GDDR6 memory, 2,560 CUDA cores, 80 Tensor cores, and 20 RT cores, delivering up to 8.25 TFLOPS FP32 performance.

The card supports four 3G-SDI and two CVBS video inputs, along with four 3G-SDI outputs. It can simultaneously capture, process, display, encode, decode, and stream video data with low latency, making it ideal for applications in military, avionics, surveillance, and AI processing.

Software support

Windows and Linux drivers are provided for x86 based platforms. The NVA2104AxX also supports the NVIDIA software stack for the A2000 GPU including the CUDA, Open CL, H.264/H.265, etc.



Specifications

Chip Set:
NVIDIA RTX A2000
Conformal Coating
Yes
Cooling
Air, Conduction
Extended Temperature Range
From -40° to +85°C
Form Factor
XMC
Video Input
Four 3G-SDI and Two CVBS (NTSC/PAL) Rear Pn6 XMC I/O. VITA 46.9 x12d+x8d+24s.
Video Output
Four 3G-SD Rear Pn6 XMC I/O. VITA 46.9 x12d+x8d+24s

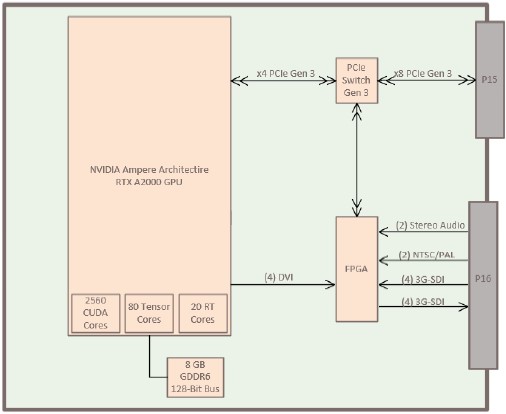

Block Diagram
