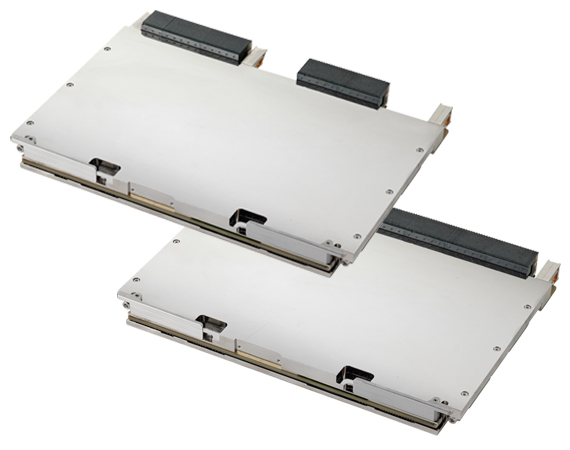

NPN244/NPN244S

6U VPX HPC Graphics & GPGPU Output Cards with Dual NVIDIA Turing GPUs
NPN244-NPN244S

Overview

NPN244

6U OpenVPX HPC Graphics & GPGPU Output Card

The NPN244 6U VPX is a high-performance computing & GPGPU OpenVPX card that hosts dual GPUs with alignment to the VITA-65 standard. Based on the NVIDIA® Turing™ architecture using either the NVIDIA® Quadro RTX™ 5000 platform or NVIDIA® Quadro RTX™ 3000 platform, the NPN244 offers exceptional graphics and GPGPU compute capability with CUDA® support, AI, and deep learning.

NPN244S

6U OpenVPX HPC Graphics & GPGPU Output Card with alignment to SOSA Technical Standard

The NPN244S 6U VPX is a high-performance computing & GPGPU OpenVPX card that hosts dual GPUs based on the NVIDIA Quadro RTX architecture with alignment to the SOSA™ Technical Standard. Also based on the NVIDIA Turing™ architecture using either the NVIDIA® Quadro RTX™ 5000 platform or NVIDIA® Quadro RTX™ 3000 platform, the NPN244S offers exceptional graphics and GPGPU compute capability with CUDA® support, AI, and deep learning.

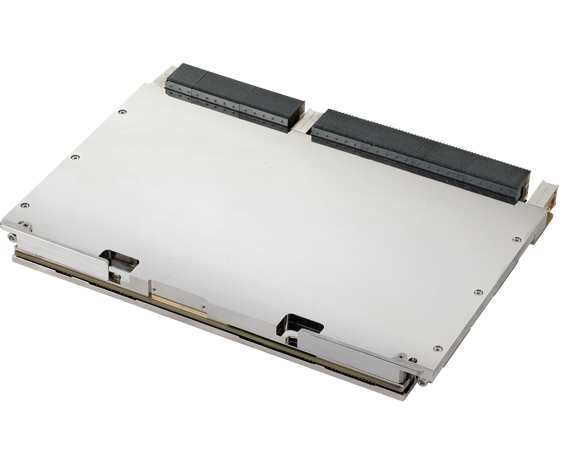

NPN244

NPN244

6U VPX (VITA 65) Dual NVIDIA Quadro Turing GPU HPC & Graphics Output Board.

  • 2x NVIDIA Quadro Turing RTX5000 / RTX3000 MXM GPUs
  • 8x DisplayPort 1.2 outputs (Rear I/O)
  • 6U OpenVPX VITA 65 form-factor

DOWNLOAD DATASHEET

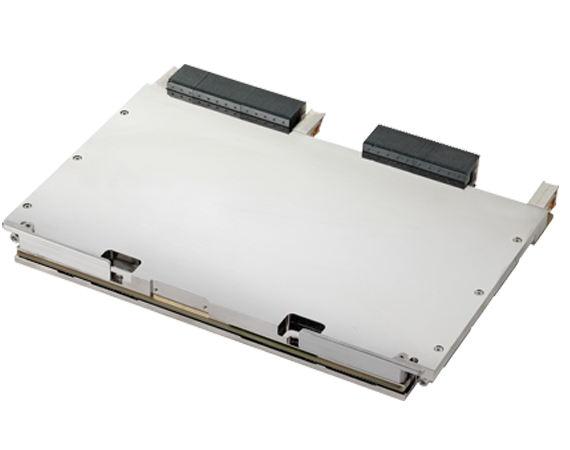

NPN244S

NPN244S – SOSA

6U VPX (SOSA-aligned) Dual NVIDIA Quadro Turing GPU HPC & Graphics Output Board.

  • 2x NVIDIA Quadro Turing RTX5000 / RTX3000 MXM GPUs
  • 4x DisplayPort 1.2 outputs (Front I/O – air-cooled only)
  • 6U VPX SOSA aligned form-factor SOSA aligned profile: SLT6-PAY-4F2Q1H4U1T1S1S1TU2U2T1H-10.6.4

DOWNLOAD DATASHEET

Specifications

Application
Video & Graphics
Chip Set:
NVIDIA QuadroRTX™ 3000 GPU, NVIDIA QuadroRTX™ 5000 GPU
Extended Temperature Range
From -40° to +85°C
Form Factor
VPX 6U
Operating System (OS) Support
CUDA, NVIDIA CUDA, OpenCL, OpenGL, Windows 7
Processor
NVIDIA
Ruggedization
Conduction Cooled

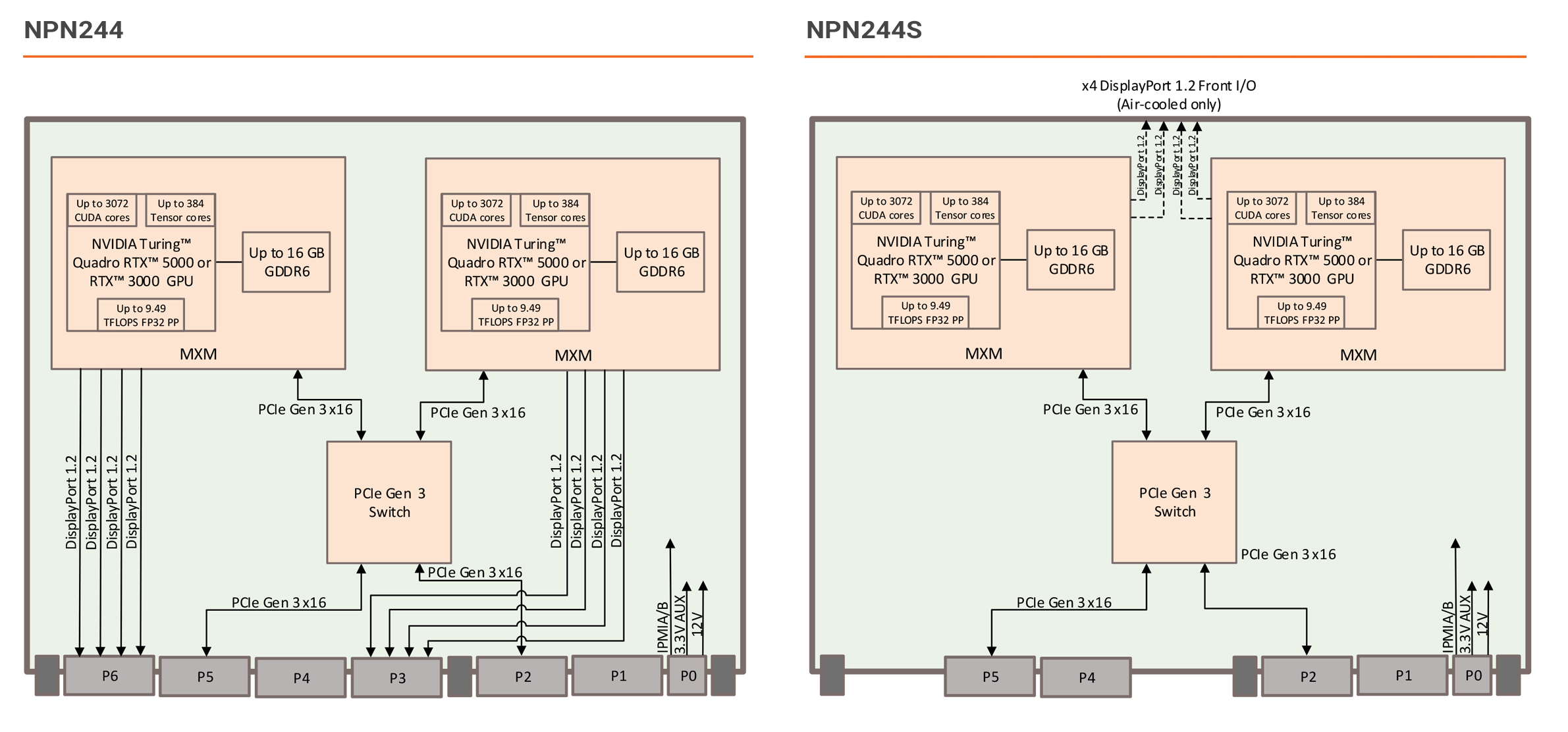

Block Diagram
