ICS-8560

Rugged 2-channel, 400 MHz DAC XMC/PMC digital transmitter module with Virtex-4 FPGA intended for Software Defined Radio (SDR) applications such as communications & radar in benign & hostile environments.
ICS-8560

This product entered a Restricted Production Phase (RPP) on December 4, 2012

Please refer to downloads section below if you require documentation or software. If you have any questions or require product support, including help migrating to our latest products, please contact us.
To see all end of life products CLICK HERE.

We recommend the following alternative solutions:

Overview

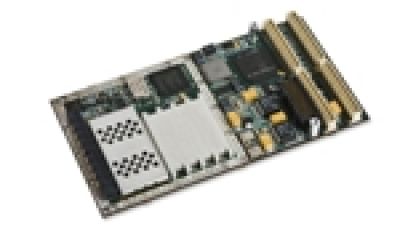

Designed for deployment in harsh and benign environments, the ICS-8560 is a rugged conduction-cooled 16-bit digital transmitter in XMC/PMC module format. It offers two channel operation with sampling frequencies of up to 400 MHz for Software Defined Radio (SDR) applications such as radar and tactical communications transmit. The combination of high performance FPGA and DAC resources allows base band signals to be processed, shifted to a selected radio frequency band at up to VHF frequencies and converted to analog form directly on the ICS-8560. Algorithms such as interpolation, beamforming, digital up conversion and modulation can be developed to execute in the onboard Xilinx Virtex-4 (XC4VFX60 or XC4VFX100), using the included Hardware Development Kit (HDK).





  • 2 transformer-coupled analog outputs, 16-bit resolution (Analog Devices AD9726)
  • FS ≤ 200 MHz (Single Data Rate Mode)
  • Fs ≤ 400 MHz (Double Data Rate Mode)
  • Xilinx Virtex-4 FX60 or FX100 FPGA with multiple IP cores (incl. SDR 200 MHz, DDR 400 MHz)
  • 8-connector Samtex GRF1-J connector (Ruggedization Levels 1, 2 and 3)
  • 8 individual MMCX connectors (Ruggedization Levels 4 and 5)
  • Companion to V4DSP 6U VME FPGA & PowerPC Processor
  • Hardware Development Kit (HDK) included
  • VxWorks, Linux and Windows software drivers
  • For Ruggedization Levels, please see the configuration guide under the downloads tab
  • ICS-8560 Press Release





Specifications

Channels
2
Form Factor
XMC/PMC
Function
Transmitter (Analog Output)
Max. Sampling/Conversion Frequency
400 MHz/ch.
Resolution
16-bit
Ruggedization
Level 1-5 Air, Conduction Cooled
User Programmable FPGA
Virtex-4 XC4VFX100
