ICS-8145

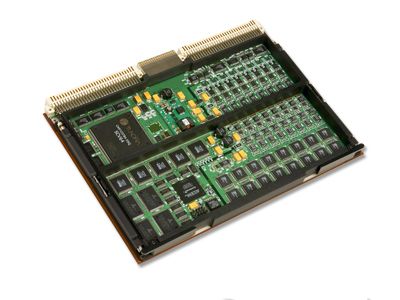

Rugged high-speed acoustic ADC card with signal conditioning. Sixteen independent ADC channels, signal conditioning and programmable clock generation resources are all provided in a 6U VME card available in 5 ruggedization levels.
ICS-8145

This product entered a Restricted Production Phase (RPP) on January 18, 2010

Please refer to downloads section below if you require documentation or software. If you have any questions or require product support, including help migrating to our latest products, please contact us.
To see all end of life products CLICK HERE.

Overview

Designed for applications in high frequency sonar and high-speed test and measurement, the ICS-8145 combines the best aspects of various Abaco Systems acoustic products.

It includes signal conditioning for each analog input channel, consisting of programmable gain control (four ranges) and a fixed frequency anti-alias filter. The filters on the standard version of the product have cut-off frequencies of 1.25 MHz; as an option, the frequencies can be changed. The ICS-8145 can be configured to accept up to 16 differential inputs, simultaneously sampled at frequencies of up to 2.5 MHz/channel. Two memory options are available: the standard version of the card provides 2 MBytes of synchronous SRAM, while the extended memory option provides 8 MBytes. As an alternative to the VMEbus, output data may be routed through an FPDP II port at up to 400 MBytes/s. All analog signal inputs are routed through the VME PO connector, while the FPDP output port is routed through the A and C rows of the VME P2 connector.





  • 16 ADC channels (Analog Devices AD9260): 16-bits @ 2.5 MSample/sec
  • Two banks of onboard memory: 1 MByte or 4 MBytes each (2 MBytes or 8 MBytes total)
  • Two input voltage ranges: 20 Vpp and 2 Vpp
  • Onboard signal conditioning provides programmable gain, filtering
  • Rear I/O features differential analog inputs and FPDP II output bus
  • VxWorks device drivers available. For Linux availability, contact Abaco Systems
  • Ruggedization Levels





Specifications

Channels
16
Form Factor
VME 6U
Function
Analog Input
Max. Sampling/Conversion Frequency
2.5 MHz/ch.
Memory
2 - 8 MB
Resolution
16-bit
