GRA116SETH

SOSA-aligned OpenVPX 3U GPGPU Card
GRA116SETH

Overview

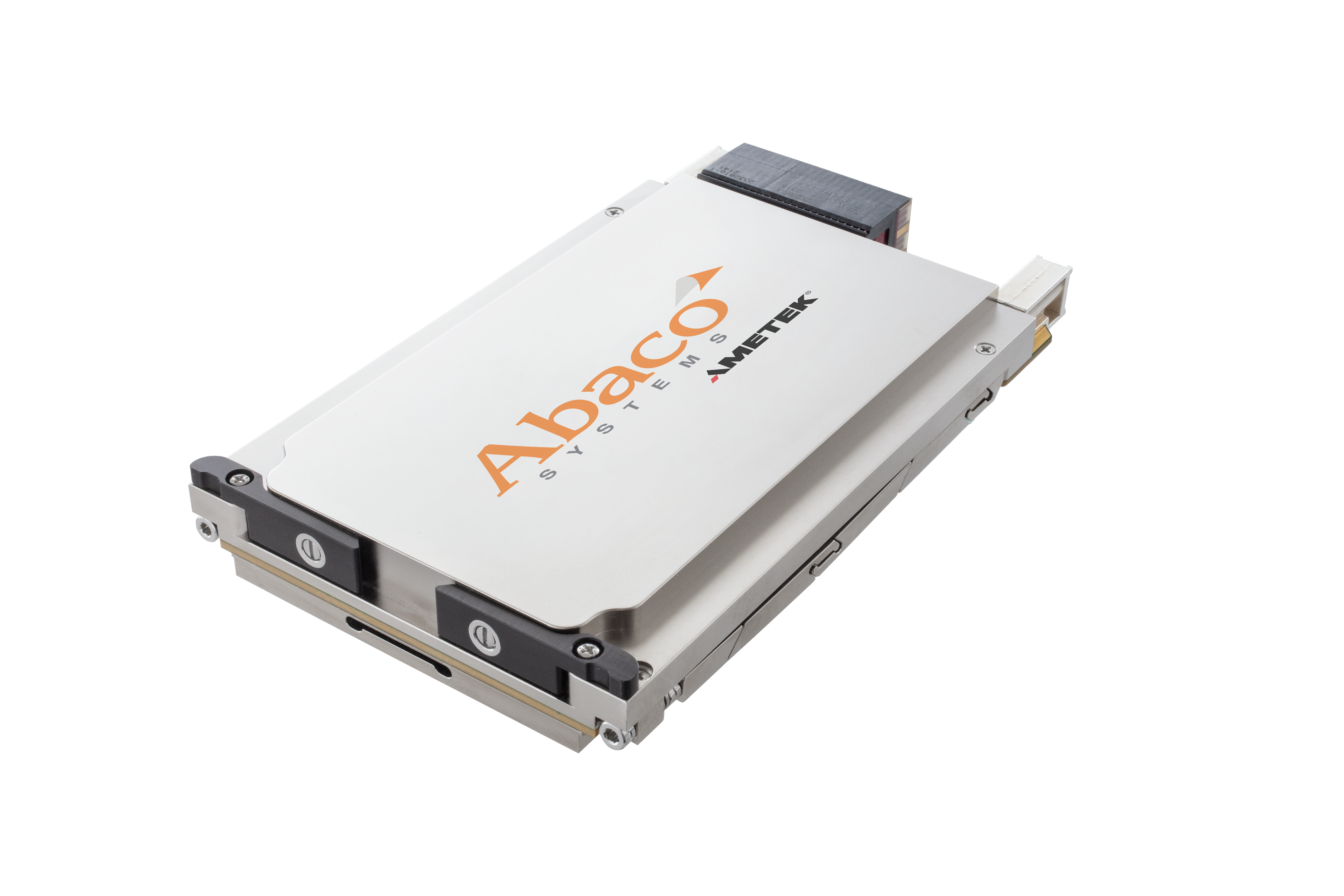

The GRA116SETH is a rugged 3U VPX video graphics and GPGPU card featuring the NVIDIA Ampere A4500 GPU with 5,888 CUDA cores and 16 GB GDDR6 ECC memory. It supports high-speed data transfer up to 100 Gbps via NVIDIA ConnectX-7 SmartNIC and offers both air-cooled and conduction-cooled options.

Aligned with the SOSA Technical Standard, it includes a 40/100Gb Ethernet DataPlane interface, making it ideal for AI, deep learning, and real-time mission computing applications requiring low-latency data processing and AI-enabled target detection.

Software support

Windows and Linux drivers are provided for x86 based platforms. The GRA116SETH also supports the NVIDIA software stack for the A4500 GPU including the CUDA, DirectX12, Open GL, H.264/H.265, etc.





Specifications

Chip Set:
NVIDIA Quadro Ampere A4500 GPU
Conformal Coating
Yes
Cooling
Air, Conduction
Extended Temperature Range
From -40° to +75°
Form Factor
3U VPX
I/O
x2 DisplayPort outputs (VITA 65 option)
Temp Range
-40°C to 71°C at the base plate

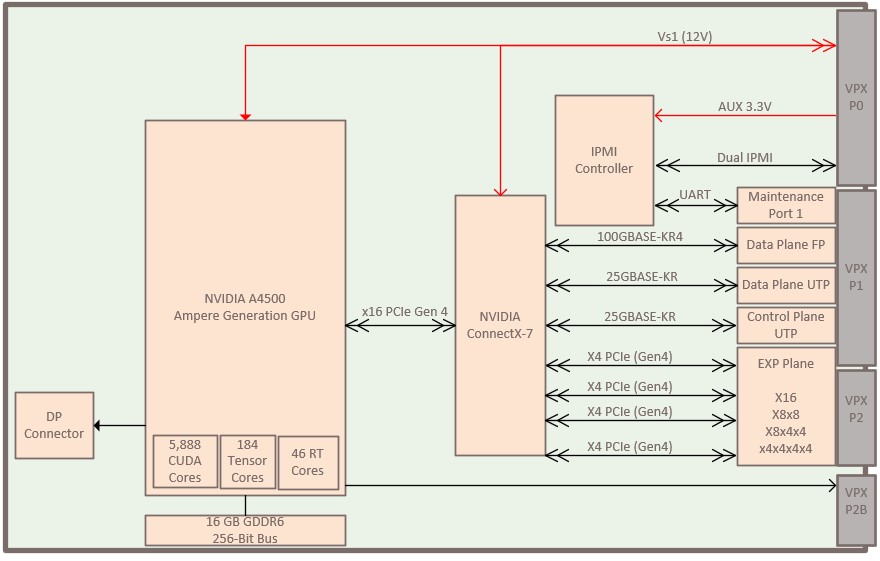

Block Diagram

Request A Quote
