GRA116OP

Next Generation High-Performance GPGPU

The GRA116OP is a rugged 3U VPX VITA 65 form factor high-performance computer (HPC) and graphics output board based on very latest NVIDIA® Ampere™ architecture using the NVIDIA A2000™ platform.

Most Advanced GPU Technology

By utilizing the NVIDIA A2000™ the GRA116OP’s GPU node is equipped with 8 GB GDDR6 graphics memory with ECC, 2560 CUDA® cores, 80 Tensor cores (3rd Gen), 20 RT cores (2nd Gen), and delivers up to 9.3 TFLOPS floating-point 32 performance with CUDA™ and OpenCL™ support. Additionally, the A2000™ provides a 128-bit wide memory bus for 192 GB/s peak memory bandwidth.

Ultimate Flexibility

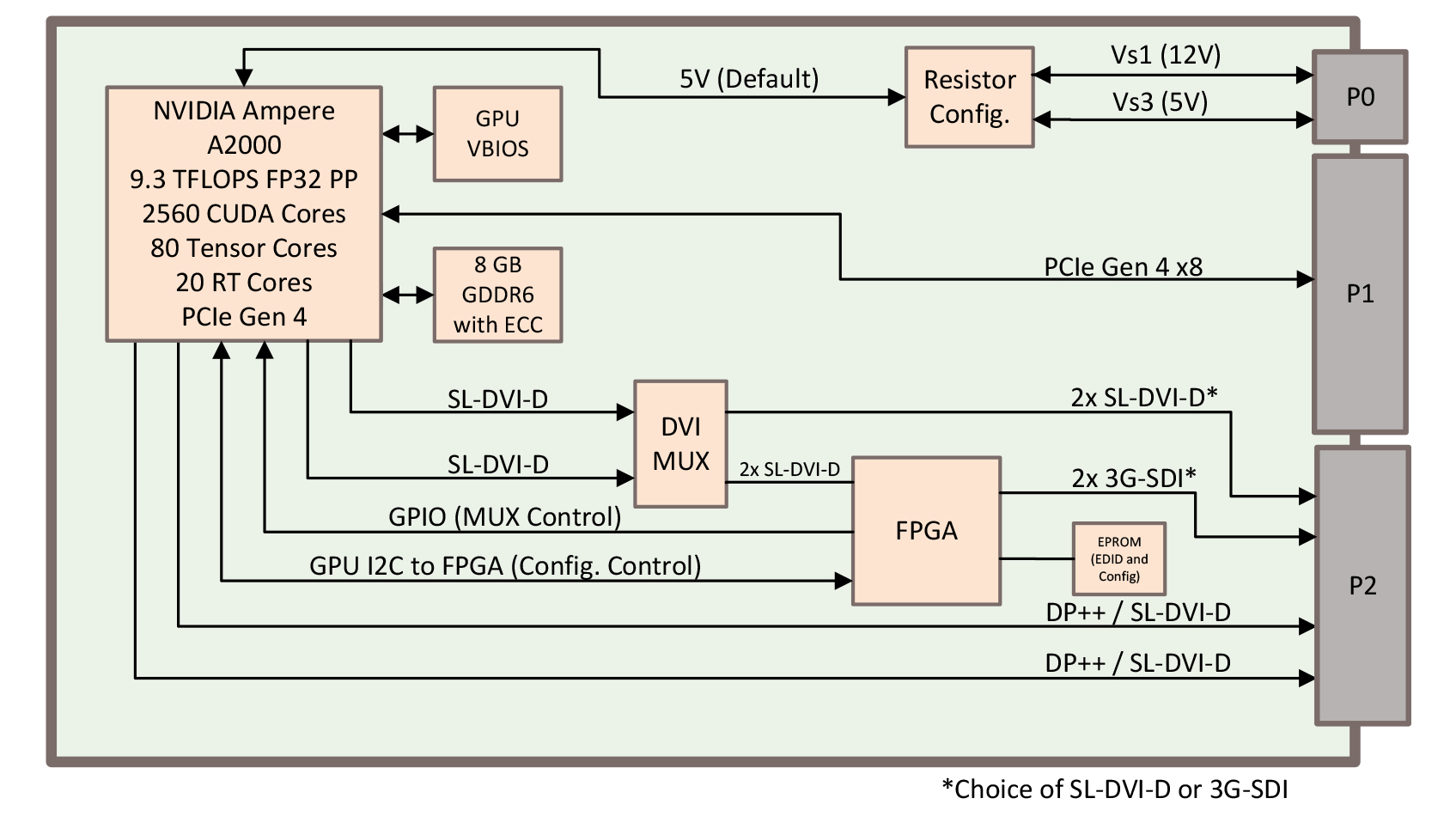

The GRA116OP is equipped with four graphics / video outputs which are available in four configuration options: (1) x2 DisplayPort; x2 Single-Link DVI-D outputs; (2) x4 Single-Link DVI-D outputs; (3) x4 DisplayPort outputs; (4) x2 Single-Link DVI-D; x2 3G-SDI. This level of configuration demonstrates Abaco’s understanding of what our customers need and delivering multiple, flexible video / graphics output on a single board with video conversion IP in the on-board FPGA.

Rugged by Design

By soldering the GPU directly onto the VPX card, the GRA116OP boasts an extremely rugged chip-down design, and brings the power of NVIDIA® and CUDA® without a multi-chip module.
