This product entered a Restricted Production Phase (RPP) on June 1, 2010
Please refer to downloads section below if you require documentation or software. If you have any questions or require product support, including help migrating to our latest products, please contact us.
To see all end of life products CLICK HERE.
Overview

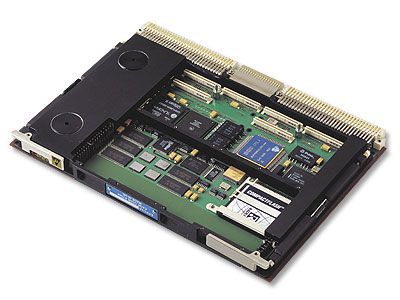

EP1A (Embedded PowerPC) is a COTS 6U VME64 board offering cost-effective processing based on the highly integrated MPC8245, plus four optional sync/async serial lines and an optional MIL-STD-1553 interface for embedded communications and/or control applications. A CompactFlash site is provided making the board suitable for remote applications where mission data is required to be inserted/removed in the field.
- Five ruggedization levels, air- and conduction-cooled
- 6U VME SBC
- 64 MB SDRAM with EDC
- Freescale 8240 or 8245 to 350 MHz
- 2x PMC slots
- For Ruggedization Levels, please see the configuration guide under the downloads tab
- P25X601 Rear Transition Module
Specifications
# Expansion Slots:
2
Bus Interface Chip
Tundra Universe IID
Ethernet
10/100BaseT
Form Factor
VME 6U
Maximum Memory
64 MB SDRAM with ECC
Processor
8245 @ 450 MHz
Ruggedization
Level 4-5 Conduction Cooled
Serial I/O
6
Transition Modules
P25X601
