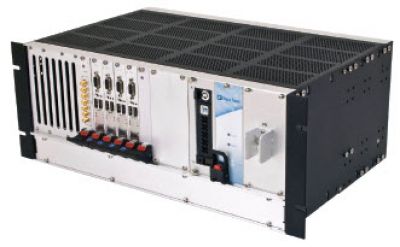

AVC-CPCI-3059 SRC Advanced Vehicle Computer

3U CompactPCI application-ready vehicle computer
AVC-CPCI-3059 SRC System

Overview

Abaco Systems AVC-CPCI-3059 SRC Application Ready Vehicle Computer Control System is a COTS packaged pre-validated computer system that provides a rugged and highly flexible computing platform suited for mission applications requiring rock-solid reliability such as UAVs, booster and ground vehicles, and manned aircraft.

Abaco Systems’ COTS-based AVC-CPCI-3059 SRC Application Ready computer system can be deployed in the field as soon as your application is ready, or use the AVC-CPCI-3059 SRC as a starting point for multiple application-specific configurations. The arduous task of integrating off the shelf boards has already been done for you -- shortening your time to project completion. You have one point of contact for all issues and a single part number -- not a collection of parts.





  • COTS AVC rugged conduction cooled chassis
    • 12x 3U CompactPCI slots
    • MIL-C-38999 connectors
  • Intel-based single board computer
  • Linux operating system
  • BIT/EBIT support
  • Standard conformal coating
  • I/O capabilities
    • Ethernet
    • Serial
    • SATA SSD
  • Qualified on:
    • Ground vehicles
    • Airborne vehicles





Specifications

Form Factor
cPCI 3U
Operating System (OS) Support
Linux
Processor
Intel Core 2 Duo T7400 @ 2.167 GHz
Slots
12
Type
SRC

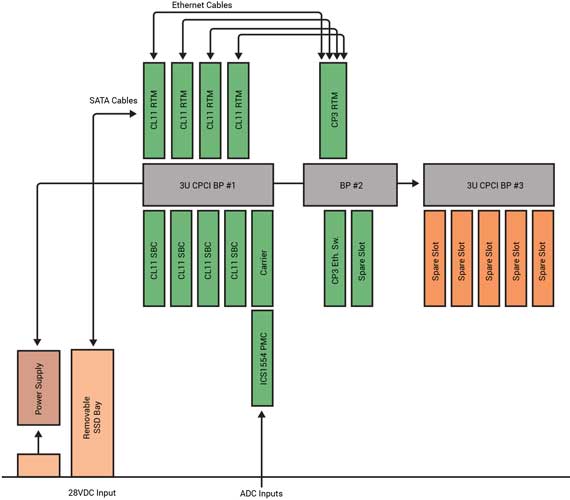

Block Diagram
