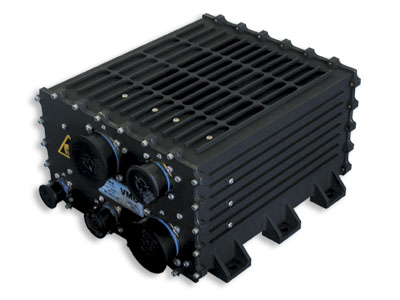

AVC-cPCI 3009 Advanced Vehicle Computer

Rugged computing platform for in-flight situational awareness

AVC-cPCI 3009 Advanced Vehicle Computer

This product reached the end of its lifecycle (end-of-life) on February 1, 2015

Please refer to downloads section below if you require documentation or software. If you have any questions or require product support, including help migrating to our latest products, please contact us.
To see all end of life products CLICK HERE.


AVC-cPCI-3009 Situational Awareness Interface Server brings video and graphics data processing to a wide range of challenging avionics applications. This ruggedized conduction-cooled video frame grabber system offers a complete flight-ready graphics processing application, optimized for harsh military environments where equipment is subjected to higher than normal temperature and vibration stress.

Based on a powerful FPGA computing processor and integrated MPEG-4 encoder, this integrated system is well-suited for video data recording, surveillance, UAV operations, reconnaissance, and any camera-based application where video data is captured and transferred over a network.

Designed to capture frames from an NTSC video stream from an aircraft's on-board camera, the AVC-cPCI-3009 compresses the video frames, then send the compressed image data over a network to a workstation or notebook computer for further processing. Using an FPGA-based processor provides the flexibility of a software application with the performance of a hardware implementation, giving the AVC-cPCI-3009 Situational Awareness Interface Server a high degree of performance to in-flight command and control systems.

  • Dissipates under 59 watts of power
  • Intel ULV Celeron processor
  • PCB-based wiring harness for improved reliability
  • Six 3U cPCI slots


Form Factor
Power Supply
16-40 VDC, 100W
