AVC-cPCI 3006 Advanced Vehicle Computer

3U CompactPCI rugged computing platform

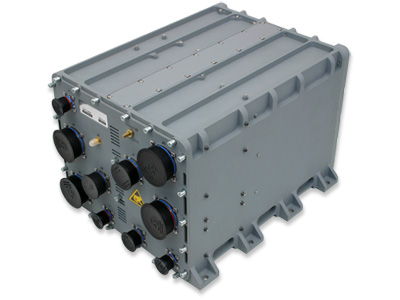

AVC-cPCI 3006 Advanced Vehicle Computer

This product reached the end of its lifecycle (end-of-life) on February 1, 2015

Please refer to downloads section below if you require documentation or software. If you have any questions or require product support, including help migrating to our latest products, please contact us.
To see all end of life products CLICK HERE.


AVC-cPCI 3006 provides a rugged, yet highly flexible COTS computing platform suited for mission applications requiring rock-solid reliability such as UAVs, booster vehicles, and ground vehicles. Manufactured using Electrical Discharge Machining (EDM) and milling, the aluminum alloy (6061-T6) is strong, lightweight, and resistant to EMI.

At 8.65" H x 11.26" W x 13.6" D, the 300 watt, 3U cPCI 14 slot configuration provides six 2nd generation CM4 Power-PC processors, 12 channels of RS-232/422/485 high speed serial, 24 dual redundant 1553 channels, and Ethernet connectivity. In addition, the four DIO1 cards together provide over 160 inputs and outputs including; bi-level optically coupled inputs and outputs, general purpose TTL, and an encoder interface. The AVC-cPCI 3006 weighs under 28 lbs and dissipates less than 36 watts of power via conduction cooling.

  • CM4 Single Board Computer with PowerPC Motorola 7410/750/755 400-500 Mhz processor
  • Dissipates less than 36 watts
  • 14, 3U cPCI slots on 2 Independent Backplanes (7 slots each)
  • Single 300 watt, or dual redundant 150 watt power supply


Form Factor
Power Supply
16-40 VDC, 300W
