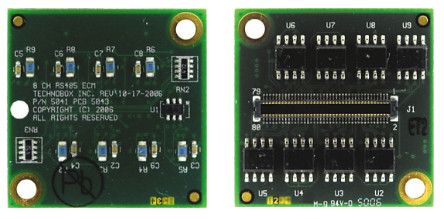

5041 MMS ECM, Interface

(RoHS Compliant Lead-free) Modular Micro Mezzanine System™ Electrical Conversion Module (ECM) Asynchronous - 8 port RS485 / RS422 with Fixed Termination
DOWNLOAD DATASHEET
REQUEST A QUOTE
Overview
Specifications
Downloads
Request A Quote

This product entered a Restricted Production Phase (RPP) on July 18, 2022

Please refer to downloads section below if you require documentation or software. If you have any questions or require product support, including help migrating to our latest products, please contact us.
To see all end of life products CLICK HERE.

Overview

ECM P/N 5041 provides eight channels of RS485 / RS422 I/O with fixed 120 ohm termination for each channel. Speeds are up to 30M bits per second. All channels power up as inputs. Also transceiver inputs are always enabled for loop back diagnostic use when the outputs are enabled. Software can enable outputs on a channel by channel basis.

Specifications

Features
120 Ohm termination
Function
RS-485/422 Async Converter
Technical Parameters
8 bi-directional channels
