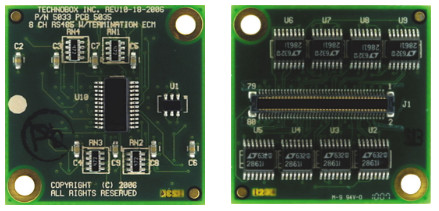

5033 MMS ECM, Interface

(RoHS Compliant Lead-free) Modular Micro Mezzanine System™ Electrical Conversion Module (ECM) Asynchronous 8 Ports RS485 / RS422 with Programmable Termination
DOWNLOAD DATASHEET
REQUEST A QUOTE
Overview
Specifications
Downloads
Request A Quote

This product entered a Restricted Production Phase (RPP) on July 18, 2022

Please refer to downloads section below if you require documentation or software. If you have any questions or require product support, including help migrating to our latest products, please contact us.
To see all end of life products CLICK HERE.

Overview

ECM P/N 5033 provides eight channels of RS485 / RS422 I/O. The 110 ohm termination for each channel is enabled or disabled in software. Disabling termination saves power by eliminating unneeded or redundant termination. Speeds of up to 20 Mega bits per second are possible, but this design also features a 250K bits per second slower edge rate mode. The 250K bit mode is valuable when EMI is more of a concern and throughput is not important. All channels power up as inputs with the outputs disabled.

Specifications

Features
110 Ohm termination, 20MB/s data rate or 250KB/s 'low EMI mode'
Function
RS-485/422 Async Converter
Technical Parameters
8 bi-directional channels
