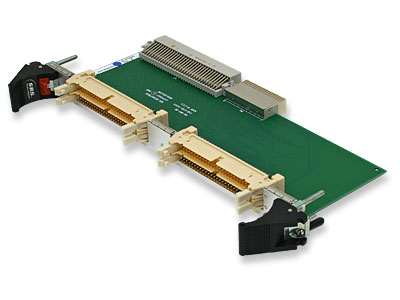

XM-664-60

Transition module; rear panel I/O to VIPC664
Default-image

This product entered a Restricted Production Phase (RPP) on September 4, 2018

Please refer to downloads section below if you require documentation or software. If you have any questions or require product support, including help migrating to our latest products, please contact us.
To see all end of life products CLICK HERE.

Overview

XM-664-60 provides rear panel I/O access to the VIPC664 IndustryPack carrier via the VME64 backplane. The transition module features a mating 5-row DIN Harting P2 connector, a 7-row 2 mm Hard Metric P0 connector, and 6U height. Connectors are provided to give system access to 200 lines of IndustryPack I/O. The transition modules are constructed with no active components. The XM-664-60 is 60 mm deep and provides four vertical, shrouded, keyed 50 pin ribbon cable connectors.

  • IndustryPack I/O Lines: 200
  • Rear Panel: 6U mounting
  • Form Factor: Non-standard
  • Connectors: 50-pin vertical

Specifications

Form Factor
Other
