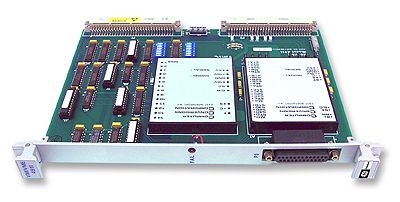

VME-4911 Quad-Channel Multiplexed Synchro/Resolver-to-Digital Converter Board
VME-4911

This product entered a Restricted Production Phase (RPP) on October 14, 2011

Please refer to downloads section below if you require documentation or software. If you have any questions or require product support, including help migrating to our latest products, please contact us.
To see all end of life products CLICK HERE.

Overview

The VME-4911 board is a four-channel, 14-bit multiplexed Synchro/Resolver-to-Digital Converter. The multiplexed input scheme is cost-effective because fewer components and interconnections are required. The product was designed utilizing primarily two modules. A converter module is interconnected to the multiplexer and S&H module to form a four-channel board. All common synchro and resolver line-to-line voltages and frequencies are available.





  • Double Eurocard form factor
  • Front panel fail LED
  • Internal transformers for 60 and 400 Hz references
  • 3-wire synchro plus reference or 4-wire resolver plus reference
  • Expandable by adding multiplexers
  • Simultaneous sampling and random access
  • Quad-channel multiplexer
  • 14-bit converter
  • Supports Built-in-Test for VME-49xx series





Specifications

Channel Voltage Ranges
11.8, 26, 90.0 V
Channels
4
Form Factor
VME
Function
14-bit Synchro/Resolver-to-Digital
Throughput
DC to 1 kHz
