This product entered a Restricted Production Phase (RPP) on March 22, 2023

Please refer to downloads section below if you require documentation or software. If you have any questions or require product support, including help migrating to our latest products, please contact us.
To see all end of life products CLICK HERE.

Overview

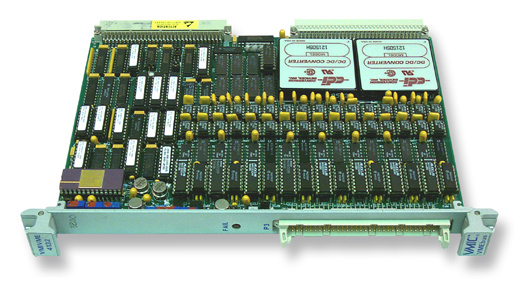

VME-4132 32-Channel Analog Output Board with Built-in-Test


  • Front panel self-test LED
  • 0.1Ω output impedance
  • Built-in-Test on-board
  • 32 analog output channels
  • On-board +/-15 V DC-to-DC conversion

Specifications

Channel Voltage Ranges
0-5V, 0-10V, ±2.5V, ±5V, ±10V
Channels
32
Form Factor
VME
Function
12-bit DAC
Throughput
3.4 mS
