This product entered a Restricted Production Phase (RPP) on February 28, 2015
Please refer to downloads section below if you require documentation or software. If you have any questions or require product support, including help migrating to our latest products, please contact us.
To see all end of life products CLICK HERE.
Overview

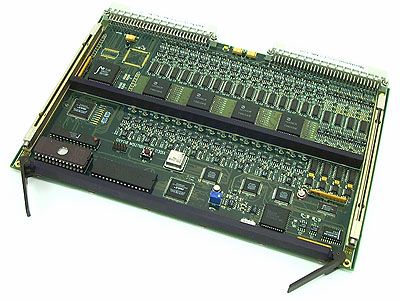

The VDB30 is a 6U VMEbus 16 x 16 video routing switcher, for use in either composite or component video systems. The highly flexible conduction-cooled VDB30 is designed to be hosted in a VMEbus card frame. The VDB30 is used to provide 16 video outputs, which can be independently programmed to select any of the 16 video input signals and 8 TTL outputs, which can be independently programmed to select any of the 8 TTL input signals.
• 16 x 16 video routing switcher for use with composite sync video systems.
• 8 YC x 8 YC video routing switcher, for use with YC video systems.
• 4 RGB x 4 RGB video routing switcher, for use with composite synchs on green video systems, and a 4 x 4 video routing switcher for use with composite sync video systems.
• 4 RGB x 4 RGB video routing switcher, for use with separate TTL syncs video systems, using separate TTL routing switcher, (VGA Systems), and a 4 x 4 video routing switcher for use with composite sync video systems.
• 4 RGB + Sync x 4 RGB + Sync video routing switcher, for use with video systems with synchs on a separate video level channel.
• 8 YC x 8 YC video routing switcher, for use with YC video systems.
• 4 RGB x 4 RGB video routing switcher, for use with composite synchs on green video systems, and a 4 x 4 video routing switcher for use with composite sync video systems.
• 4 RGB x 4 RGB video routing switcher, for use with separate TTL syncs video systems, using separate TTL routing switcher, (VGA Systems), and a 4 x 4 video routing switcher for use with composite sync video systems.
• 4 RGB + Sync x 4 RGB + Sync video routing switcher, for use with video systems with synchs on a separate video level channel.
• Any combination of the above.
Specifications
Form Factor
VME 6U
