This product entered a Restricted Production Phase (RPP) on September 1, 2010
Please refer to downloads section below if you require documentation or software. If you have any questions or require product support, including help migrating to our latest products, please contact us.
To see all end of life products CLICK HERE.
We recommend the following alternative solutions:
V7768 VME SBC
Interface with a broad range of real world external device
The V7768 dual slot VME single board computer (SBC) provides system designers with the flexibility to cost-effectively accommodate extensive...
Learn MoreOverview

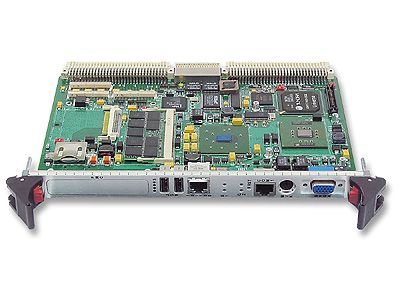

The V7807RC is a highly flexible, high performance single board computer (SBC) that integrates Intel's Pentium M with up to 1.5 GB DDR SDRAM, one PCI-X, 66 MHz PMC expansion slot, and Dual Gigabit Ethernet. Operating at up to 1.8 GHz, this SBC provides high bandwidth and processing power and is ideal for I/O intensive applications.
- Supports remote Ethernet booting
- VITA 31.1 support
- Up to 1.5 GB DDR SDRAM
- 1.8 GHz Intel Pentium M Processor
Specifications
# Expansion Slots:
1
Bus Interface Chip
Tundra Universe II
Ethernet
Gigabit Ethernet
Form Factor
VME 6U
Maximum Memory
Up to 1.5 GB DDR SDRAM
Processor
Low power CPUs
Ruggedization
Commercial (benign)
Serial I/O
4
Transition Modules
VMIACC-0586; VMIACC-0590
