Telum 210 SAS

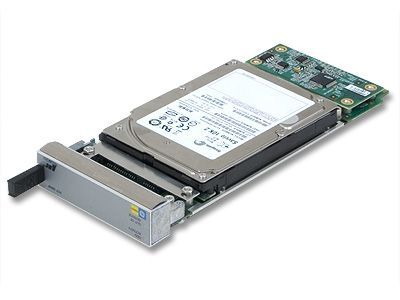

Telum 210 SAS is an AdvancedMC supporting 2.5" onboard SAS hard disk drive storage with an LSI 1064E SAS controller designed for use with ATCA single board computers (SBCs), carriers and MicroTCA platforms.

The module is available with either a Serial Attached SCSI (SAS) hard drive with up to 300GB capacity or a STAT II Solid State disk drive up with up to 64GB capacity. The onboard LSI SAS controller allows SAS operations at up to 3GB/s with no additional resources required from the host processor.

The AMC.1 PCI Express implementation provides greater bus bandwidth by providing 8 PCI Express lanes at a transfer rate up to 2.5Gb/s per lane, full duplex.

The combination of an onboard LSI 1064E SAS controller and an enterprise-class SAS disk drive guarantee a storage solution that is capable of meeting the most demanding data critical storage applications.

For maximum system design flexibility, the module is available with either a mid-size or full-size faceplate.

• 4 SAS channels; AMC.1 and AMC.3 compliant; supports up to 2 off-board SAS channels
• Supports up to 8 PCI Express lanes at transfer rates of 2.5Gb/s per lane full duplex
• SAS hard disk drive up to 300GB capacity or SATA II Solid State disk drive up to 64GB capacity
• Supports 1.5 and 3.0Gb/s SAS data transfers
• IPMI v2.0 compliant MMC
• Supports RAID with integrated striping and mirroring firmware; no software support required
• Supports single and dual port SAS drives
• Support for Solaris, Linux, Windows 2000 and Windows XP
• Available with mid-size or full-size faceplates
