This product entered a Restricted Production Phase (RPP) on November 27, 2018

Please refer to downloads section below if you require documentation or software. If you have any questions or require product support, including help migrating to our latest products, please contact us.
To see all end of life products CLICK HERE.

We recommend the following alternative solutions:

Overview

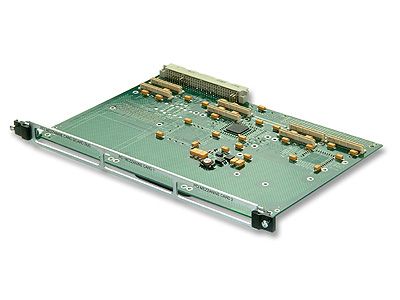

The PMC237 is a 6U form factor card that expands a single PMC site on a VMEbus processor board to two PMC sites and one PCMCIA/CardBus socket or to three PMC sites. Compatible with many VMEbus single board computers, it provides an extension of PCI and PCMCIA capacity within the VMEbus form factor. The PMC237 has the option for the PCMCIA/CardBus cards to be mounted outside the chassis using an 18-inch cable.

Functionally, the PMC237 consists of a PCI/PCI bridge (assuring compliance with PCI loading) and an optional PCI/PCMCIA Host Bus Adapter (see the Abaco Systems PCMCIA/PC Card Host Bus Adapters). Full PCI bandwidth can be maintained to PMC devices installed on the PMC237.





  • Option for PCMCIA cards to be mounted outside chassis
  • Option for PCMCIA/Card bus
  • 32-bit PCI on the primary PCI bus
  • Expands the Host Processor to a variety of PMC slots





Specifications

Capacity
3 PMC
Form Factor
VME 6U
