PCI-40B

Four slot IndustryPack carrier board for PCI
PCI-40B

This product entered a Restricted Production Phase (RPP) on May 31, 2019

Please refer to downloads section below if you require documentation or software. If you have any questions or require product support, including help migrating to our latest products, please contact us.
To see all end of life products CLICK HERE.

Overview

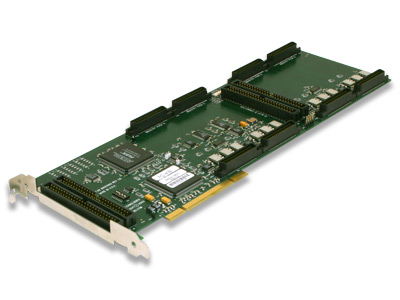

The PCI-40B IndustryPack carrier board provides four IndustryPack slots on a single desktop or industrial PC slot card. The IP bus clock is software selectable between 8 MHz and 32 MHz on a per slot basis. The standard 8 MB memory space is available for each IndustryPack site. High-speed 32-bit PCI host address space permits desirable linear mapping and fixed address partitions of memory, I/O and ID spaces for each IP. The PCI-40B uses a PLX PCI9080 controller as the PCI bus interface chip and Altera FPGA logic, which provides fully configurable PCI interrupt vector space. The PCI bus interface supports both 3.3V and 5.0V signaling.


  • Software compatible with the PCI-40A
  • Switchable 8/32 MHz IP bus
  • I/O via four 50-pin keyed, shrouded ribbon cable headers
  • 4 IP slots on a full-length universal PCI card

Specifications

Capacity
4 IP
Form Factor
PCI
