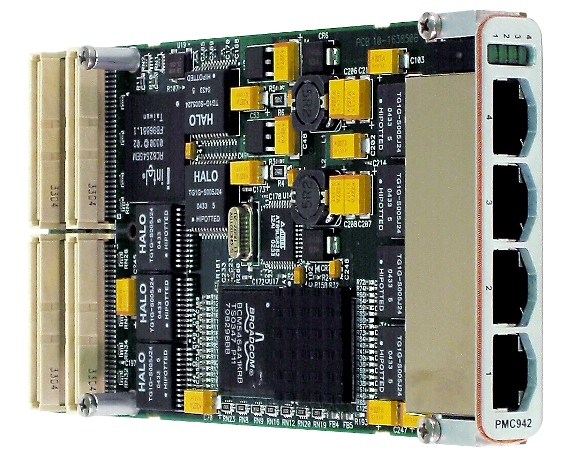

NETernity™ PMC942

NETernity PMC Layer 2 unmanaged 7-port 10/100/1000BaseTX Gigabit Ethernet switch with onboard NIC

This product entered a Restricted Production Phase (RPP) on January 1, 2012

Please refer to downloads section below if you require documentation or software. If you have any questions or require product support, including help migrating to our latest products, please contact us.
To see all end of life products CLICK HERE.

We recommend the following alternative solutions:

Overview

NETernity™ PMC942 is a fully integrated 7-port 10/100/1000 Gigabit Ethernet switch designed to support the low-cost requirements of unmanaged switch applications and converging networks. Seven ports are external; an eighth port appears as a NIC (Network Interface Card) to the host SBC to which the PMC is attached and converging networks.

  • Full wire speed Layer 2 switching on all ports
  • Serial console signals routed to P4
  • Onboard NIC is connected to an eighth port on the switch
  • PIM available to access the rear ports
  • Single port Gigabit Ethernet controller appears as a network interface to the host
  • Four ports accessible from front RJ45 connectors, three ports routed to P4
  • Seven 10/100/1000BaseTX port;auto-negotiating; supports full or half duplex
  • Unmanaged Layer 2 Gigabit Ethernet switch
  • 4K MAC address table
  • Auto address learning Auto address aging
  • 802.1p QoS
  • 802.1Q VLAN
  • Broadcom BCM5388 switch fabric

Specifications

Form Factor
PMC
Management Type
Unmanaged Layer-2
Port Type
10/100/1000BaseT
Ports
7
