This product entered a Restricted Production Phase (RPP) on October 30, 2008
Please refer to downloads section below if you require documentation or software. If you have any questions or require product support, including help migrating to our latest products, please contact us.
To see all end of life products CLICK HERE.
Overview

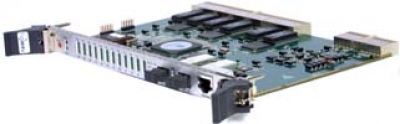

CP944 is a full wire speed, non-blocking Managed Layer 2 Ethernet switch . This switch is an economical solution for high-availability PICMG 2.16 systems. CP944 hosts 24 ports of 10/100Mb Ethernet to rear I/O and, optionally, 2 Gigabit Ethernt ports to either front or rear I/O. In a standard 19-inch rackmount chassis, 19 ports are for PICMG 2.16 compliant use with the remaining five ports available to the user for additional links via a rear transition card.
- Carrier-grade switch
- Designed for NEBS compliance
- PICMG 2.16 Fabric slot compliance
- PICMG 2.9 FRU compliant
- Full wire speed Layer 2 switching
- Managed Layer-2 solution
- Hot swap compliant per PICMG 2.16
Specifications
Form Factor
cPCI 6U
Management Type
Managed Layer-2
Port Type
1000BaseSX
Ports
24
Downloads
Brochures
White Papers
Datasheets
Request A Quote
NETernity™ CP944
Economical Managed Layer-2 6U CompactPCI with 24 10/100BaseT and 2 Gigabit Ethernet ports
