This product entered a Restricted Production Phase (RPP) on December 31, 2006
Please refer to downloads section below if you require documentation or software. If you have any questions or require product support, including help migrating to our latest products, please contact us.
To see all end of life products CLICK HERE.
Overview

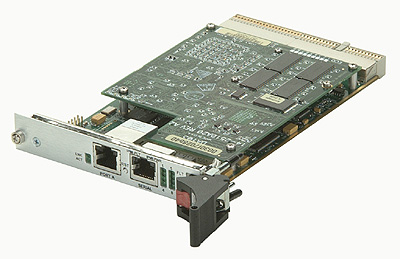

CP933 is a 3U CompactPCI managed Layer 2, 3, and 4 switch with eight 10/100BaseTX ports and two Gigabit Ethernet ports. It is designed to support managed Ethernet routing switches. It is highly scalable and flexible architecture provides a broad range of high performance Ethernet workgroup switches that include VLAN, QoS, SNMP, Spanning tree, etc.
- 3U CPCI Form Factor
- Layer 2, 3 and 4 Switching
- 8 port 10/100BaseTX, Rear Access
- 2 Gigabit Uplinks, Front Panel
- Full Duplex Operation in both 10 and 100 modes
- Auto-negotiation on all ports
- VLAN Support 802.1Q-ID Tagging
- QoS capable
- Multicast and Broadcasting
- CompactPCI Hot Swap
- IPMI PICMG 2.9 Ready
- One RS232 serial port
- Runs Linux Operating System
- NEBS Level 3
Specifications
Form Factor
cPCI 3U
Management Type
Fully Managed Layer-2/3+
Port Type
10/100BaseTX
Ports
8
