LM4

3U CPCI CPU board based on PowerPC pro
LM4

This product entered a Restricted Production Phase (RPP) on June 30, 2005

Please refer to downloads section below if you require documentation or software. If you have any questions or require product support, including help migrating to our latest products, please contact us.
To see all end of life products CLICK HERE.

Overview

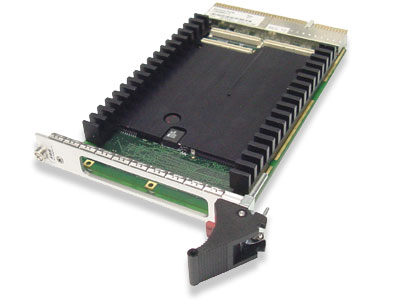

LM4 is a 3U PowerPC 75X CPCI single board computer at 400 to 500 MHz. Up to 128 MB 100 MHz SDRAM with ECC. Up to 64 MB Flash, 64-bit. Fast Ethernet 10/100 Mb. PMC extension slot. Four async. RS-232 and. RS-422/485. USB slave port and digital I/O. Optional conduction cooling available.



  • Four asynchronous - RS-232 and RS-422/485
  • PowerPC 75x, up to 500 MHz
  • Fast Ethernet 10/100 Mb
  • PMC extension slot and digital I/O


Specifications

# Expansion Slots:
1
Bus Interface Chip
TI PCI2050B
Ethernet
10/100BaseT
Form Factor
cPCI 3U
Processor
IBM 750 @ 500 MHz
Ruggedization
Conduction Cooled
Serial I/O
4
System/ Peripheral
System
Transition Modules
LMTM
