This product entered a Restricted Production Phase (RPP) on September 1, 2010
Please refer to downloads section below if you require documentation or software. If you have any questions or require product support, including help migrating to our latest products, please contact us.
To see all end of life products CLICK HERE.
Overview

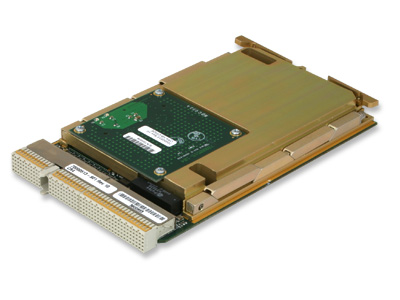

The rugged 3U CPCI Single Board Computer with an Intel Pentium M LV 738, 512 MB DDR SDRAM, 512 KB Firmware HUB, two Gigabit Ethernet, available in convection-cooled or conduction-cooled configurations, can operate as system controller or peripheral card.
- Eight GPIO ports
- Convection or conduction-cooled
- System controller or peripheral card
- Two Gigabit Ethernet ports
- Two USB 2.0 ports
- Two serial I/O (RS-232, RS-422) ports
- Serial ATA port
- Type I CompactFlash on Daughter Card
- 512 MB DDR SDRAM
- Intel Pentium M LV738 processor 1.4 GHz
Specifications
# Expansion Slots:
0
Bus Interface Chip
PLX 6254
Ethernet
Gigabit Ethernet
Form Factor
cPCI 3U
Maximum Memory
Up to 512 MB SDRAM with ECC
Processor
Low power CPUs
Ruggedization
Level 1-5 Air, Conduction Cooled
Serial I/O
2
System/ Peripheral
Both
Transition Modules
CR4-TM
