This product entered a Restricted Production Phase (RPP) on December 31, 2006
Please refer to downloads section below if you require documentation or software. If you have any questions or require product support, including help migrating to our latest products, please contact us.
To see all end of life products CLICK HERE.
Overview

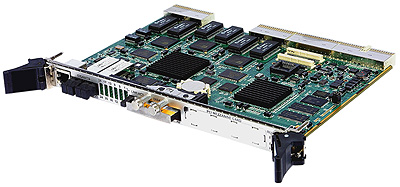

CP931FP is a 6U CompactPCI managed Layer 2, 3, and 4 switch with 24 10/100BaseTX ports and 2 Gigabit Ethernet ports. It is designed to support managed Ethernet routing switches. It is highly scalable and flexible architecture provides a broad range of high performance Ethernet workgroup switches that include VLAN, QoS, SNMP, Spanning tree, etc. The CP931FP only pulls power from the CompactPCI bus and can run with or without a system controller.
- QoS capable
- VLAN Support 802.1Q-ID Tagging
- Auto-negotiation on all ports
- Full Duplex Operation in both 10 and 100 modes
- 2 Gigabit front access fiber Uplinks
- 24 front access 10/100TX ports
- Layer 2, 3 and 4 Switching
- Carrier Grade Switch
- Designed for NEBS Compliance
- Multicast and Broadcasting
- Stand alone & Hot Swap
- Two dedicated 10/100BaseTX ports, in addition to the 24 ports that connect to the processor
- Not recommended for new designs
Specifications
Form Factor
cPCI 6U
Management Type
Fully Managed Layer-2/3+
Port Type
10/100BaseTX
Ports
24
